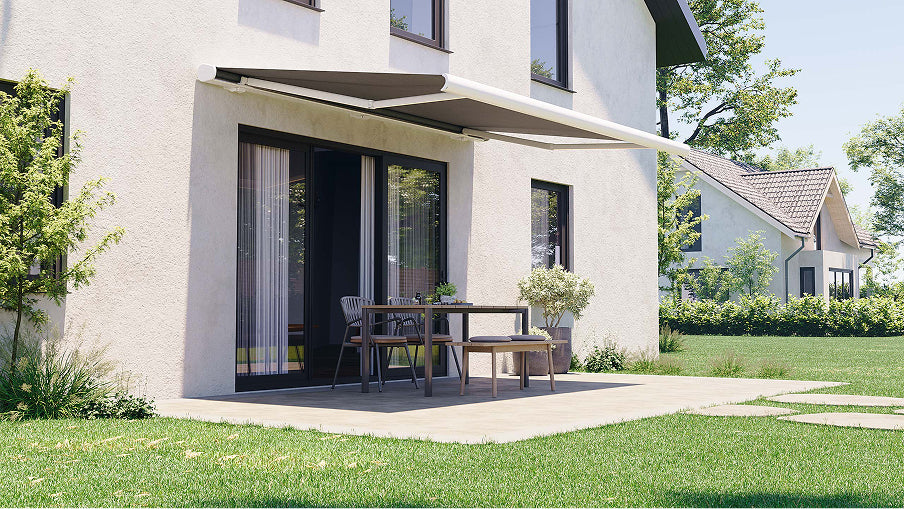

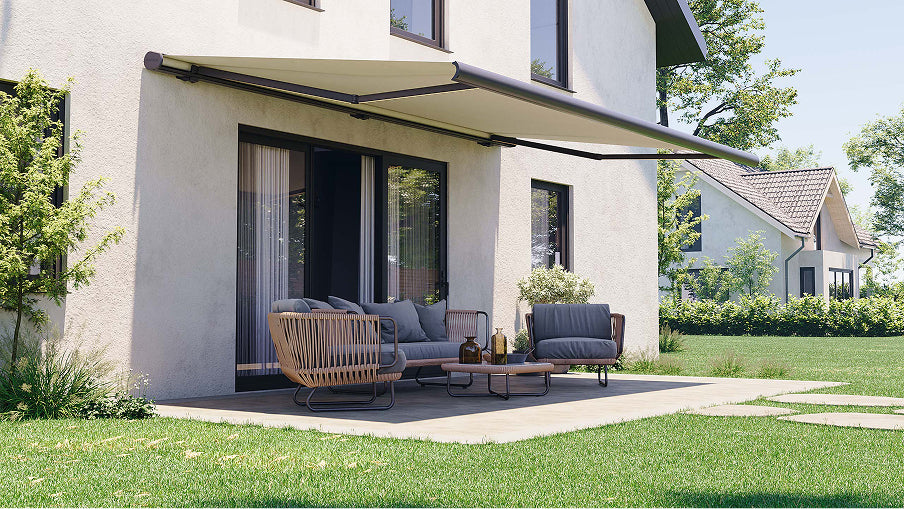

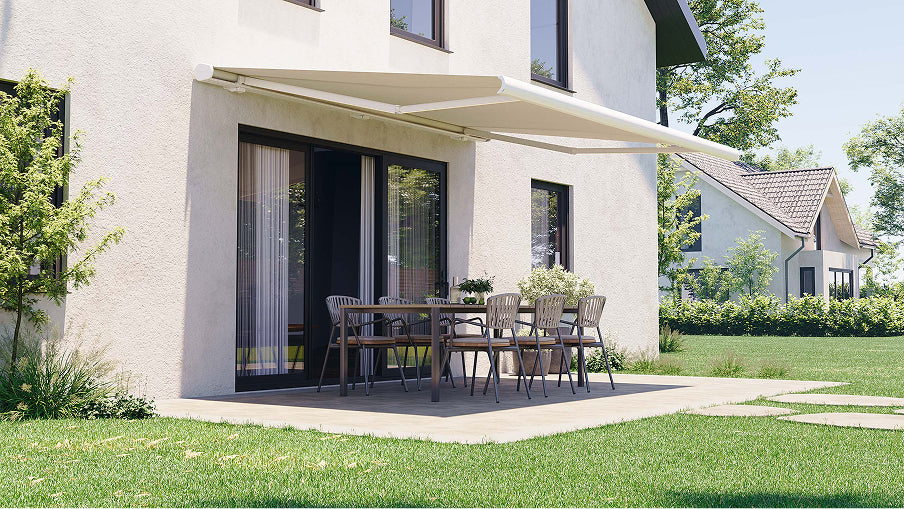

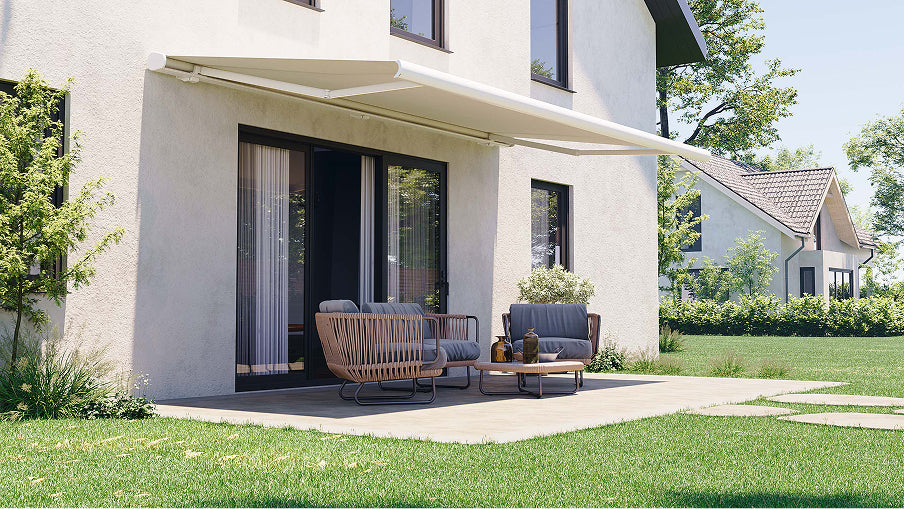

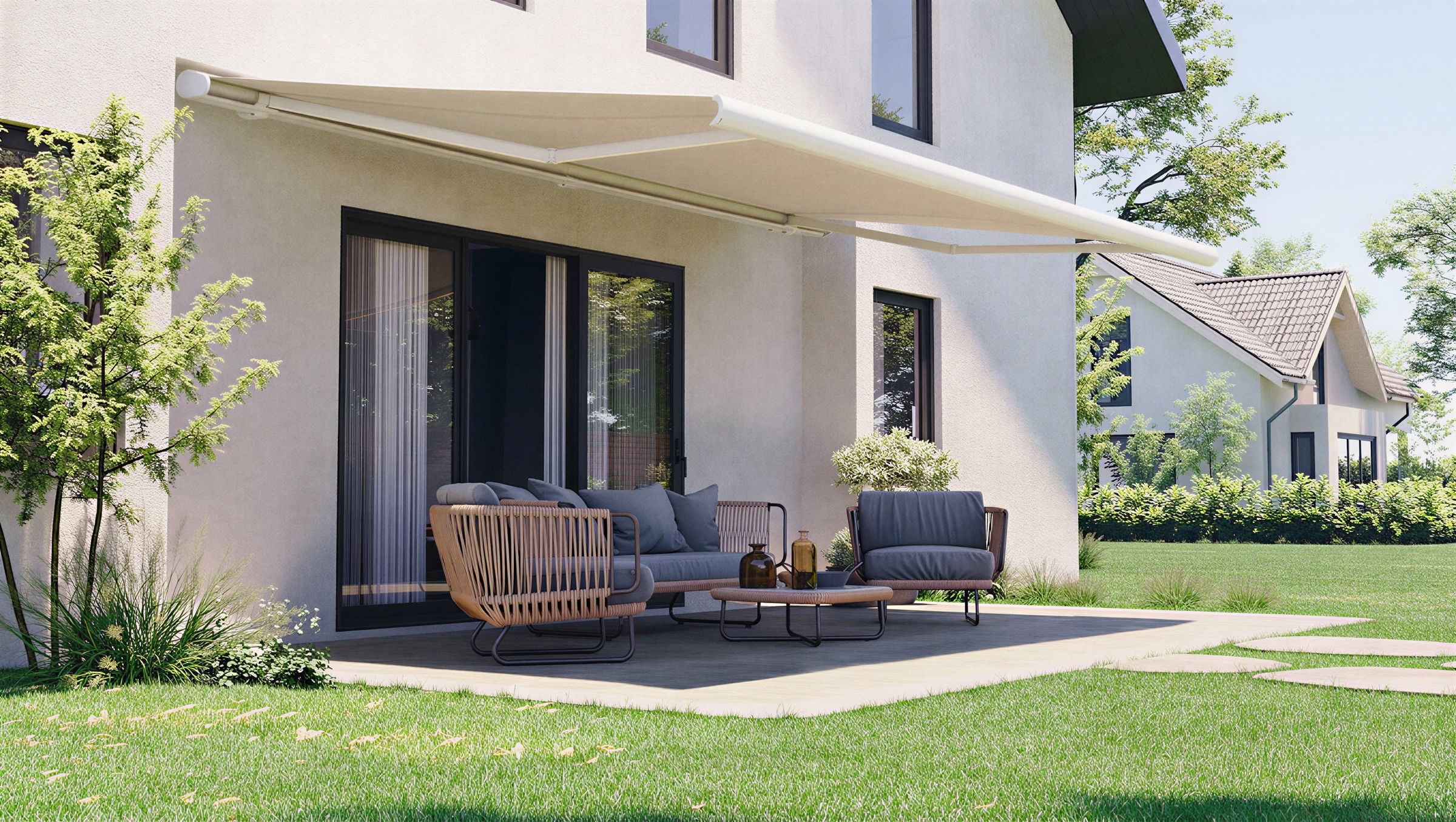

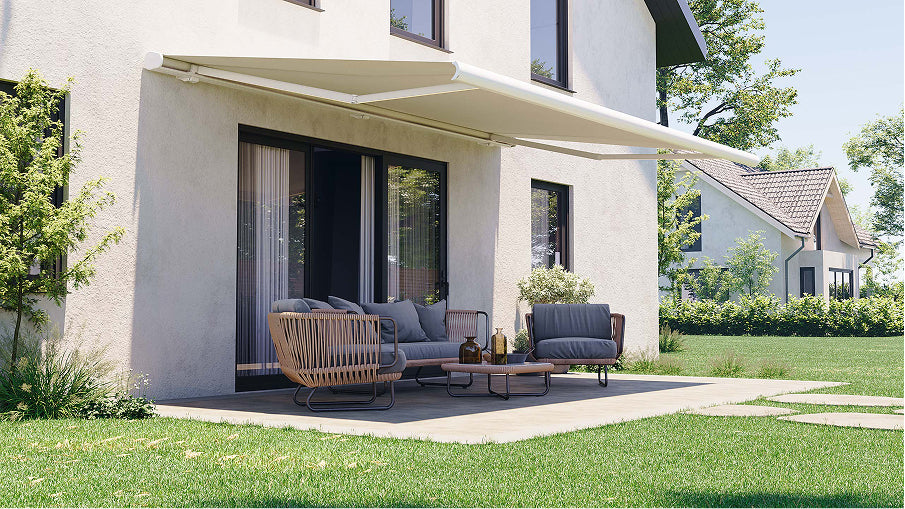

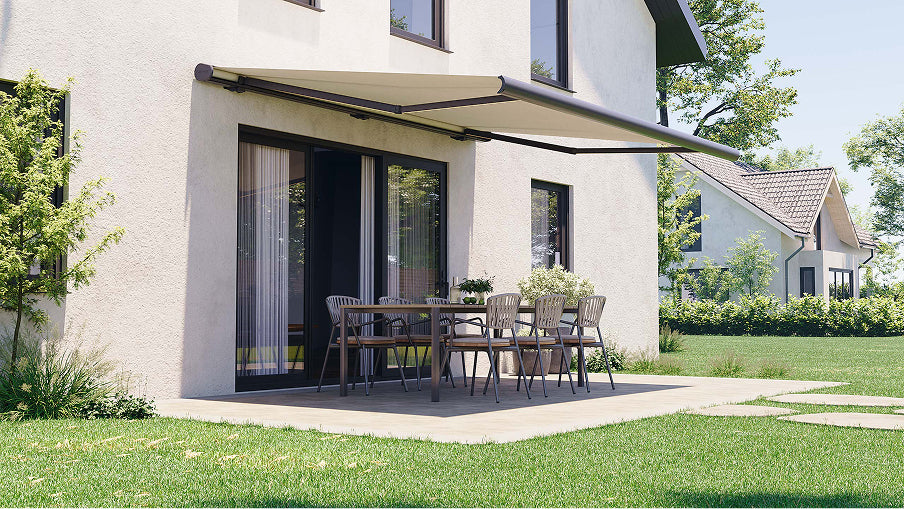

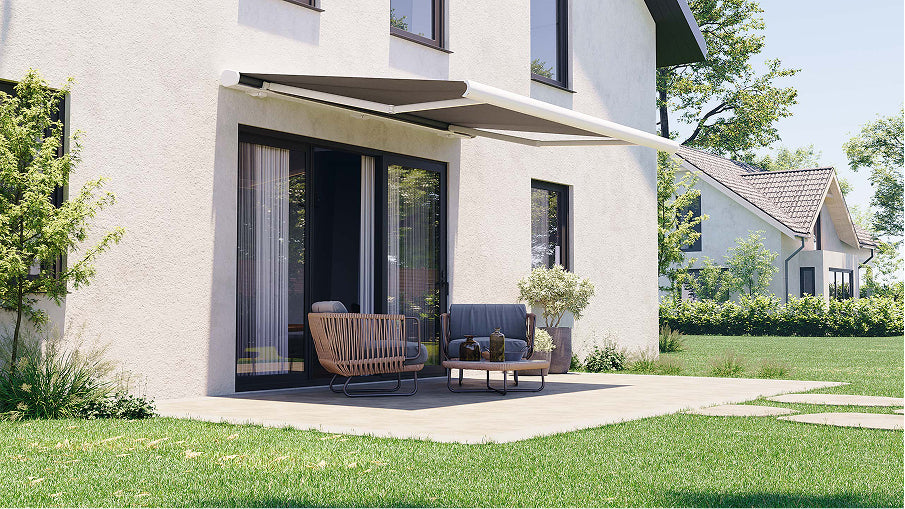

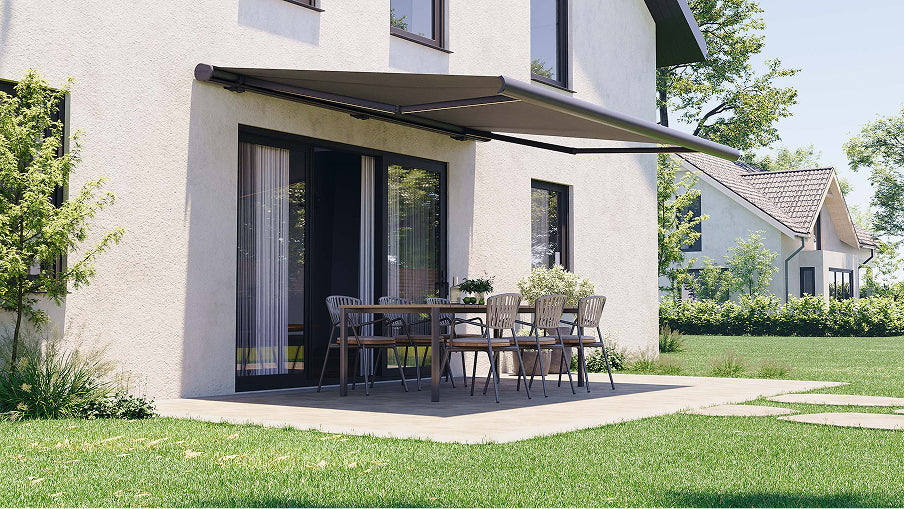

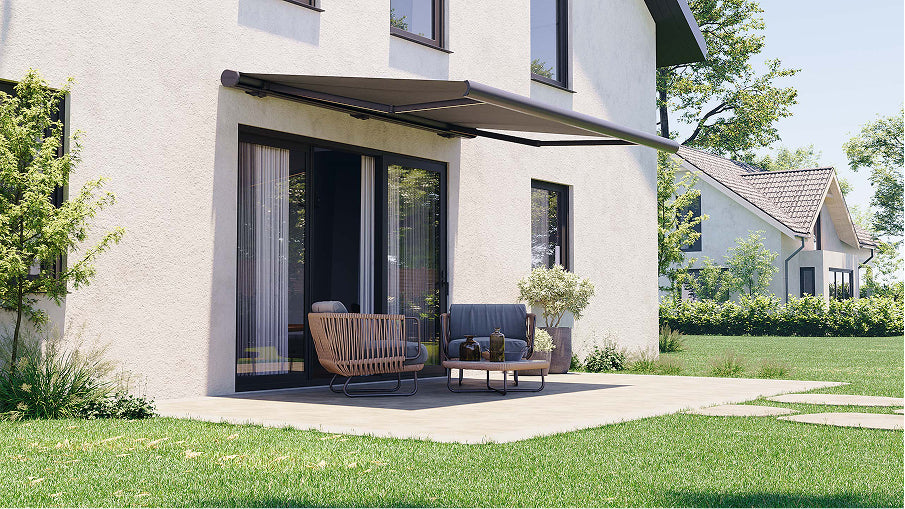

Retractable Awning

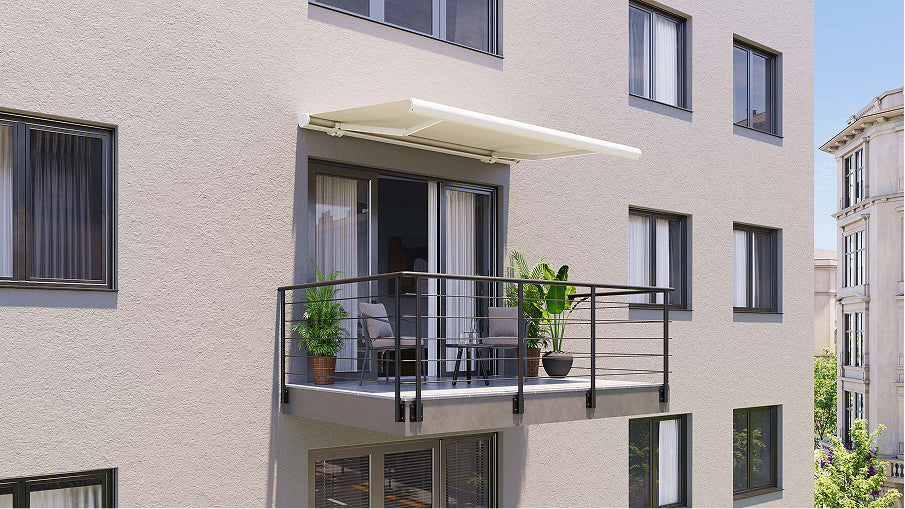

Premium Retractable Deck, Patio & Balcony Awning with Waterproof Full Cassette
-
FabricGray / Beige -

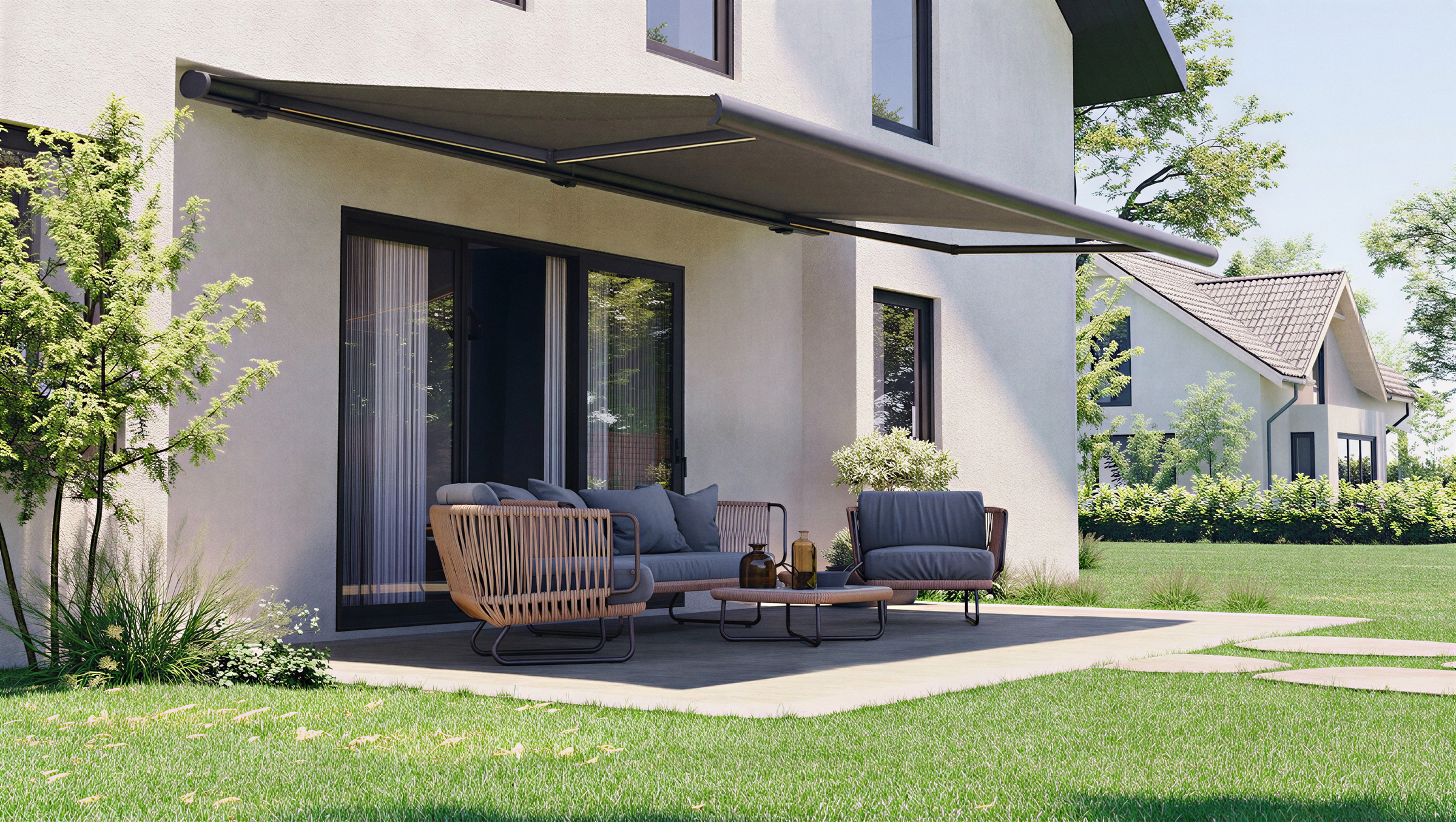

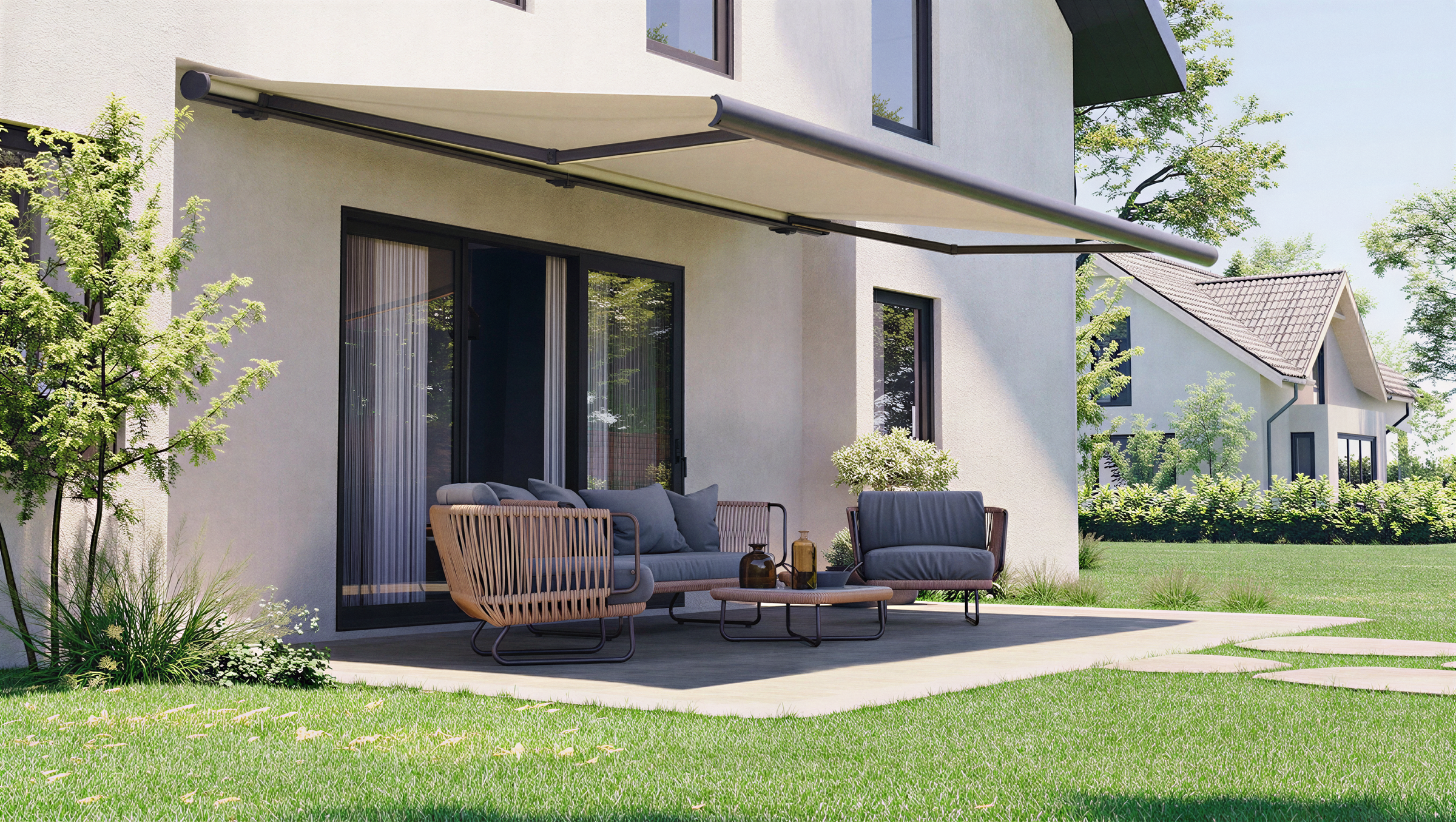

CassetteAnthracite / White -
10 sizes7'-20' wide -
OptionalWind sensor
| Design | |
|---|---|
| Housing construction | Fully enclosed cassette |
| Frame color options | Anthracite / White |
| Mounting options | Wall or ceiling |
| Approved mounting surfaces |
STANDARD: Concrete • Timber frame/stud • Render over timber • Timber rafters • Steel • Solid brick/clinker/cavity masonry • Sand-lime brick • Hollow block/Poroton • ETICS/EIFS SPECIAL CARE REQUIRED: Brick veneer on timber • AAC/Ytong • Hollow-core concrete • Natural stone |
| Operation | Remote control, hand crank |
| Dimensions | |
|---|---|
| Total product weight | 66.1 lb to 194.0 lb (incl. brackets) |
| Cassette width options | 10', 12', 13', 16', 20' |
| Cassette height (closed) | 5.9 in |
| Cassette depth (closed) | 8.7 in |
| Recommended mounting height | 8.2 ft to 11.5 ft |
| Minimum installation height | 7.9 in above door or window |
| Projection length | 7', 8', 10', 12' |
| Awning extension angle | 5° to 25°, adjustable |
| Materials | |
|---|---|
| Cassette | High-quality aluminum profile 6063-T5 |
| Arm cables | Stainless steel 304 (plastic-coated) |
| Brackets, hinges | Hot-dip galvanized Q235 carbon steel |
| Fabric material | 8.3 oz/yd² AuroWeave™ PU-coated polyester |
| Fade resistance | Level 4 |
| Rust resistant | Yes |
| Fabric | |
|---|---|
| UV protection | UPF 50+ (blocks over 98% of harmful UV rays) |
| UV test duration | 1000-hour Xenon Arc test |
| Fabric warranty | 5 years AuroWeave™ |
| Performance | |
|---|---|
| Lifespan | 20 years of standard use |
| Speed | 60 seconds full open/close cycle |
| Wind resistance | Class 2 (18-24 mph) |
| Rain resistance | EN 20811 |
| Weather sensing | Optional wind sensor for automatic retraction |
| Lighting | |
|---|---|
| Integrated | LED strip (DC24V COB, ~98 D/ft) |
| Dimmable | Yes |
| Max lumens | ~131 lumens/ft |
| Color temperature | 3000K - warm white |
| Operation | Remote control included |
| Electrical | |
|---|---|
| Weather rating | IPX4 |
| Power requirement | 120V / 60Hz |
| Plug type | Type A |
| Cable exit point | Left (facing house wall) |
| Cable length | 24.6 ft |
| Delivery | |
|---|---|
| Shipping | Free shipping on all orders |
| Number of packages | 2 (1x awning, 1x mounting brackets) |
| Product weight | 6'7"–13'1": 66–148 lb (2 people) 16'5"–19'8": 159–194 lb (3 people) Bracket carton: +11–26 lb |
| Installation | |
|---|---|
| Difficulty | Beginner-friendly |
| Installation time | 1 hour |
| Recommended crew size | 2-3 |
| Tools/hardware included | Wall or ceiling brackets are included. Fixings and spacers are not included. |
| Tools required | Drill, drill bit suited to the wall type, spanner (19 mm for M12, 17 mm for M10, 6 mm and 5 mm hex/Allen keys, level, 2 ladders, tape measure. Max fastener size: M12, minimum: M10 (washer required). |
| Professional installation | Optional |
| Surface restrictions | Plasterboard/drywall (wall or ceiling): do not mount directly. No load-bearing capacity. If drywall is present, locate the structural stud or joist behind it and fix into that. |
| Warranty | |
|---|---|
| Warranty term | Component-based / 10-year cassette |
| Warranty coverage | Aluminum cassette - 10 years Motor - 5 years Arms/mechanism - 5 years Fabric (AuroWeave™) - 5 years Electronics - 2 years |
Cool outdoor spaces by up to 20 °F. This fully enclosed motorized cassette system seals fabric and whisper-quiet mechanics when retracted, protecting from winter rot, debris, and UV degradation.
Our proprietary AuroWeave™ fabric provides a 8.3 oz/yd² PU-coated thermal-barrier with UPF 50+ protection — blocking 98% of harmful UV rays while allowing soft, natural light filter through. Featuring integrated LED lighting and a high-torque motor system, the 'screwless' profile integrates seamlessly with your home’s architecture.
Rust, Fade, and Corrosion-Resistant: Engineered with architectural-grade 6063-T5 aluminum and 304 stainless steel internal cables. Lab-tested for over 3,000 retraction cycles to ensure a 10+ year service life. Rated for Wind Resistance Class 2 (EN 13561) and IPX4 rain safety.
Certified UPF 50+ protection blocks 98% of UV rays

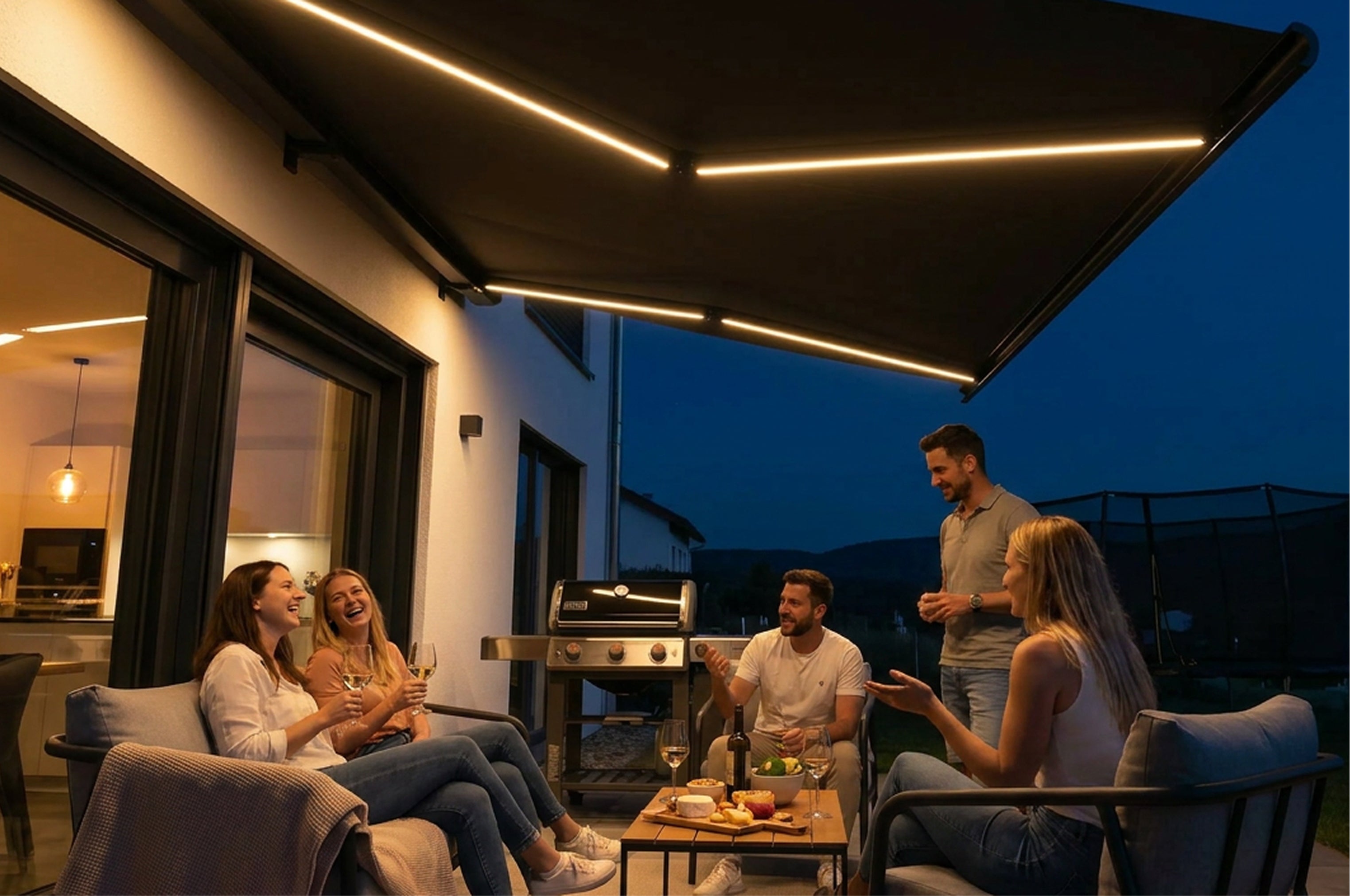

Built-in LED lighting for longer evenings outside
Mold resistant: breathable, water-repellent coating & full cassette design

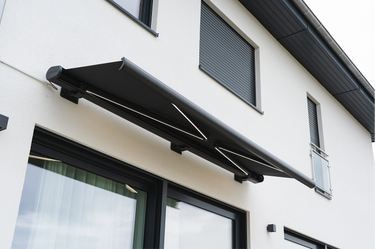

Fully enclosed cassette: weatherproof and sleek
Whisper-quiet motor with smooth operation

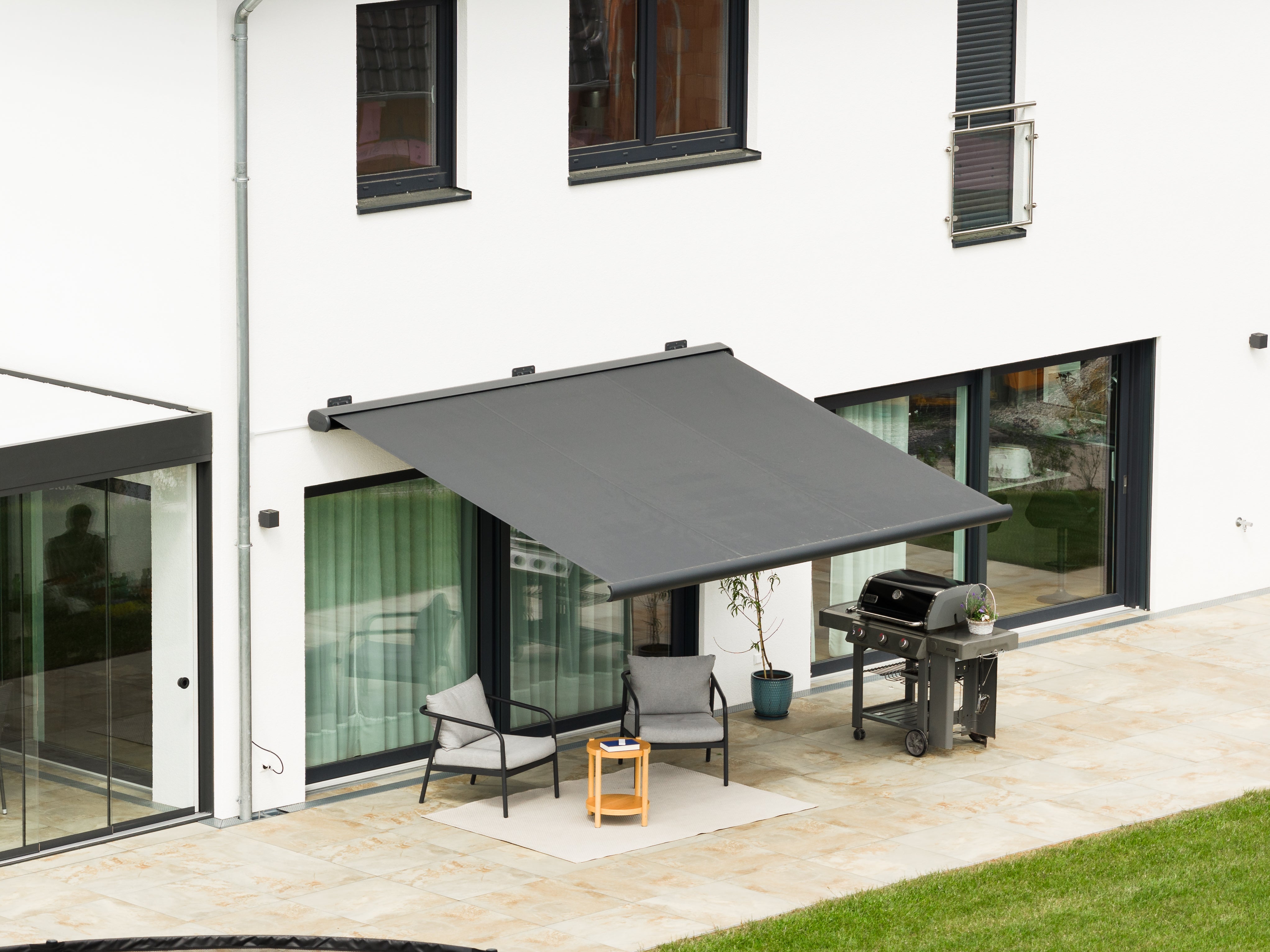

More shade with an adjustable tilt angle of 5°–25°
Optional wind sensor with auto-retract

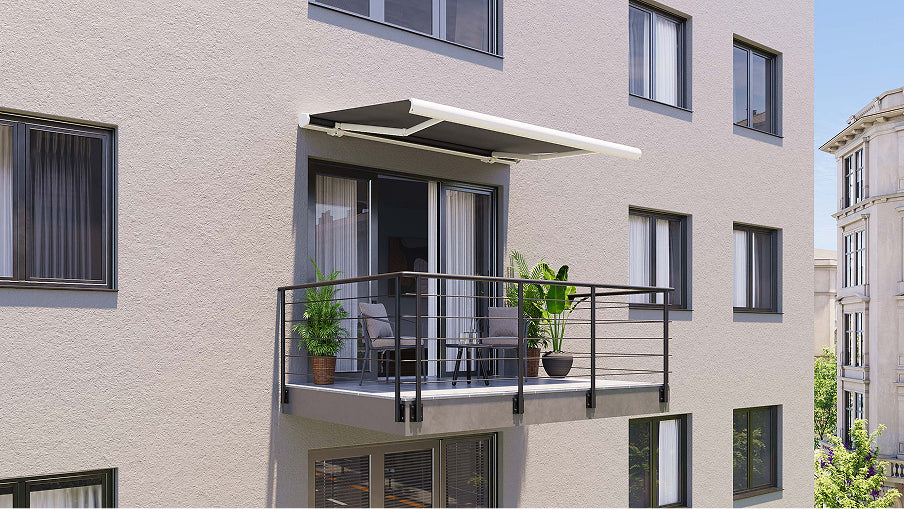

Premium Retractable Arm Awning for Patio & Balcony: High-End Design, Easy DIY Assembly

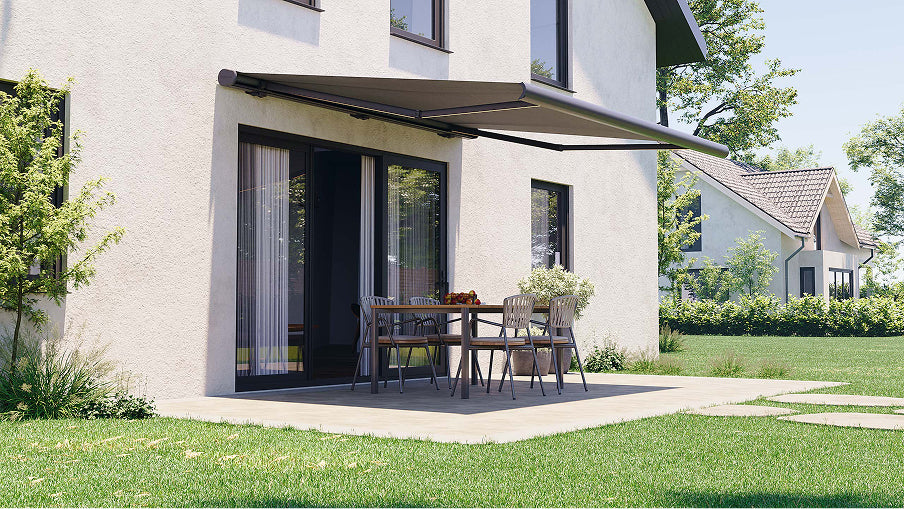

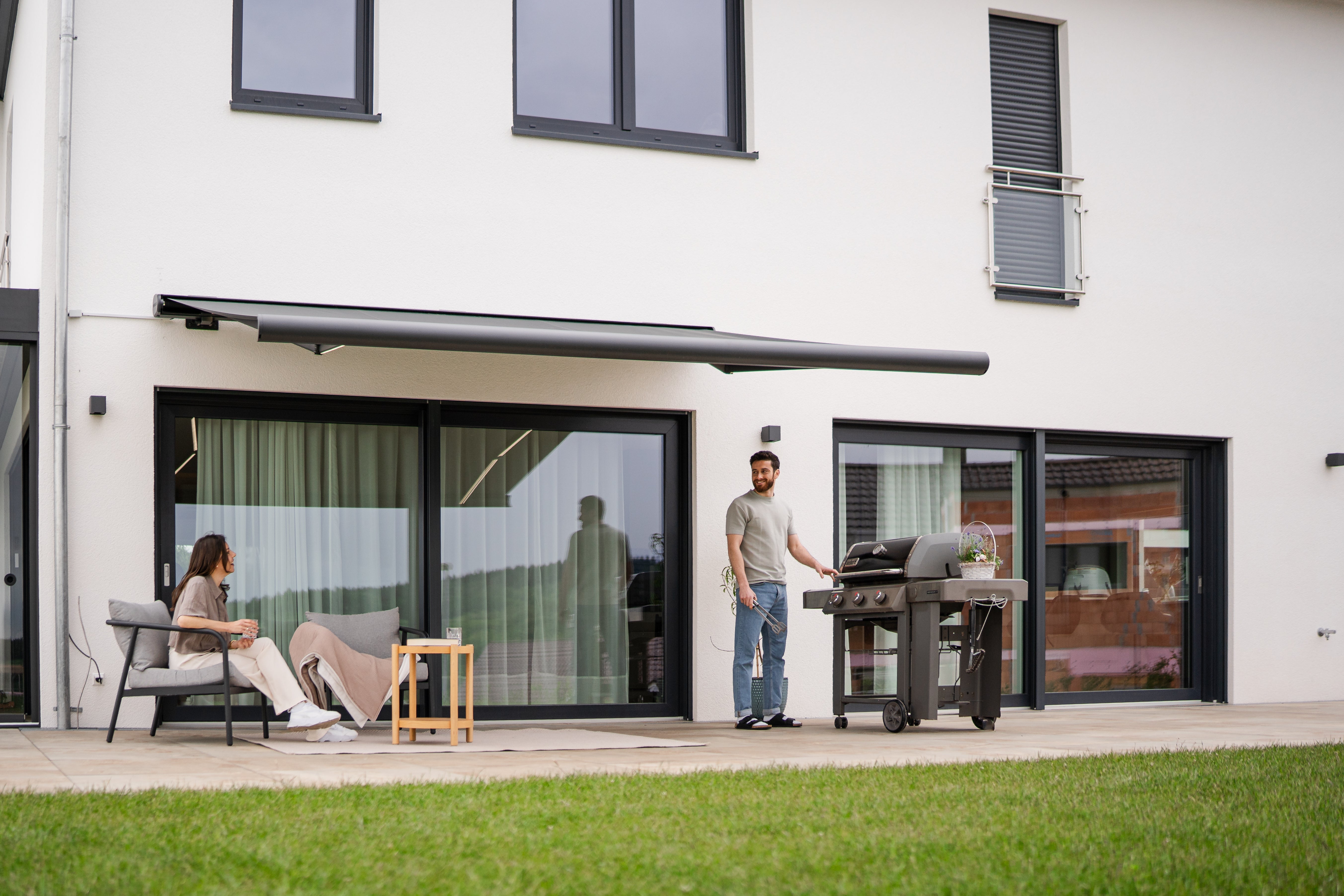

The PERGOLUX Awning is a fully enclosed electric cassette awning for homeowners who won't compromise on design or quality. It combines the quality of expensive premium awnings with the best price-to-performance ratio on the market.
- Lab-tested for over 3,000 opening and closing cycles – equivalent to around 20 years of regular use

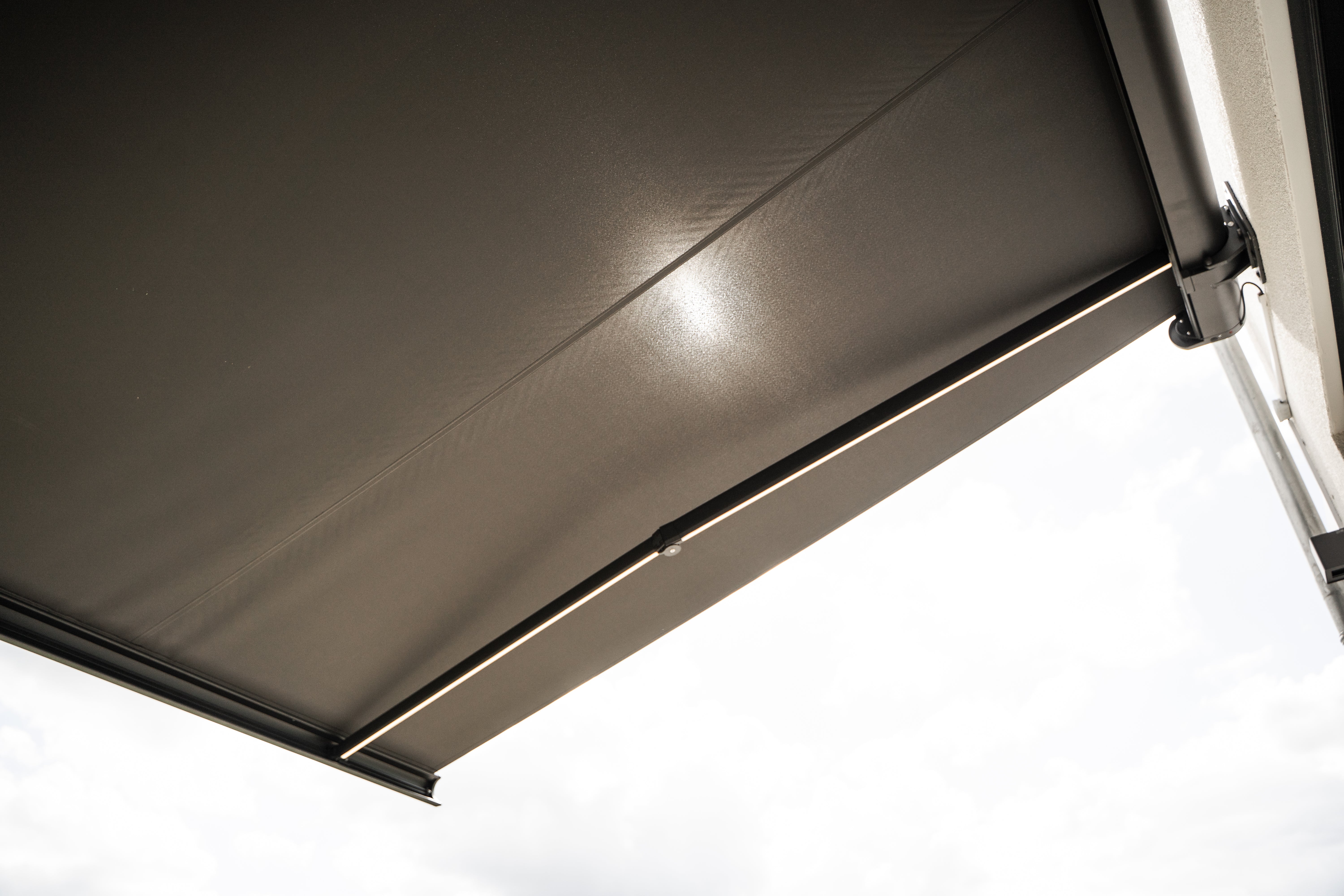

- Integrated dimmable LED lighting
- Remote-controlled arms and manually adjustable pitch angle
- Whisper-quiet operation
Over 100,000 homeowners have already upgraded their outdoor spaces with PERGOLUX.

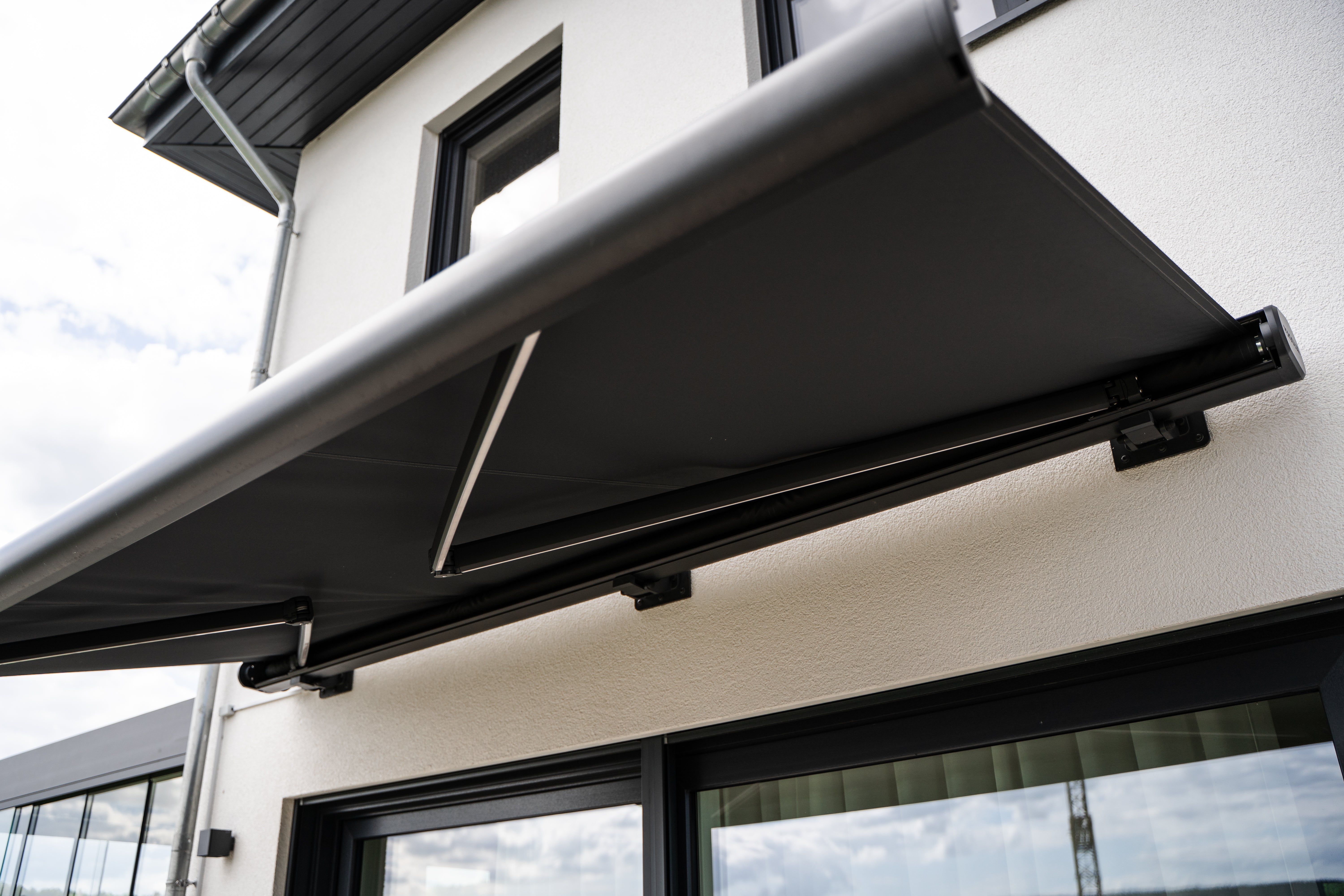

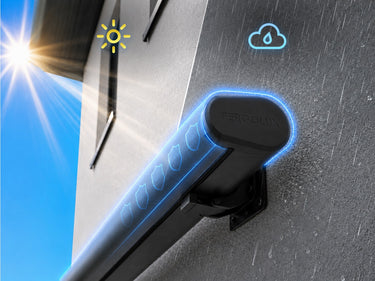

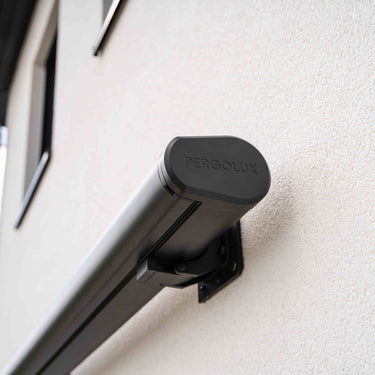

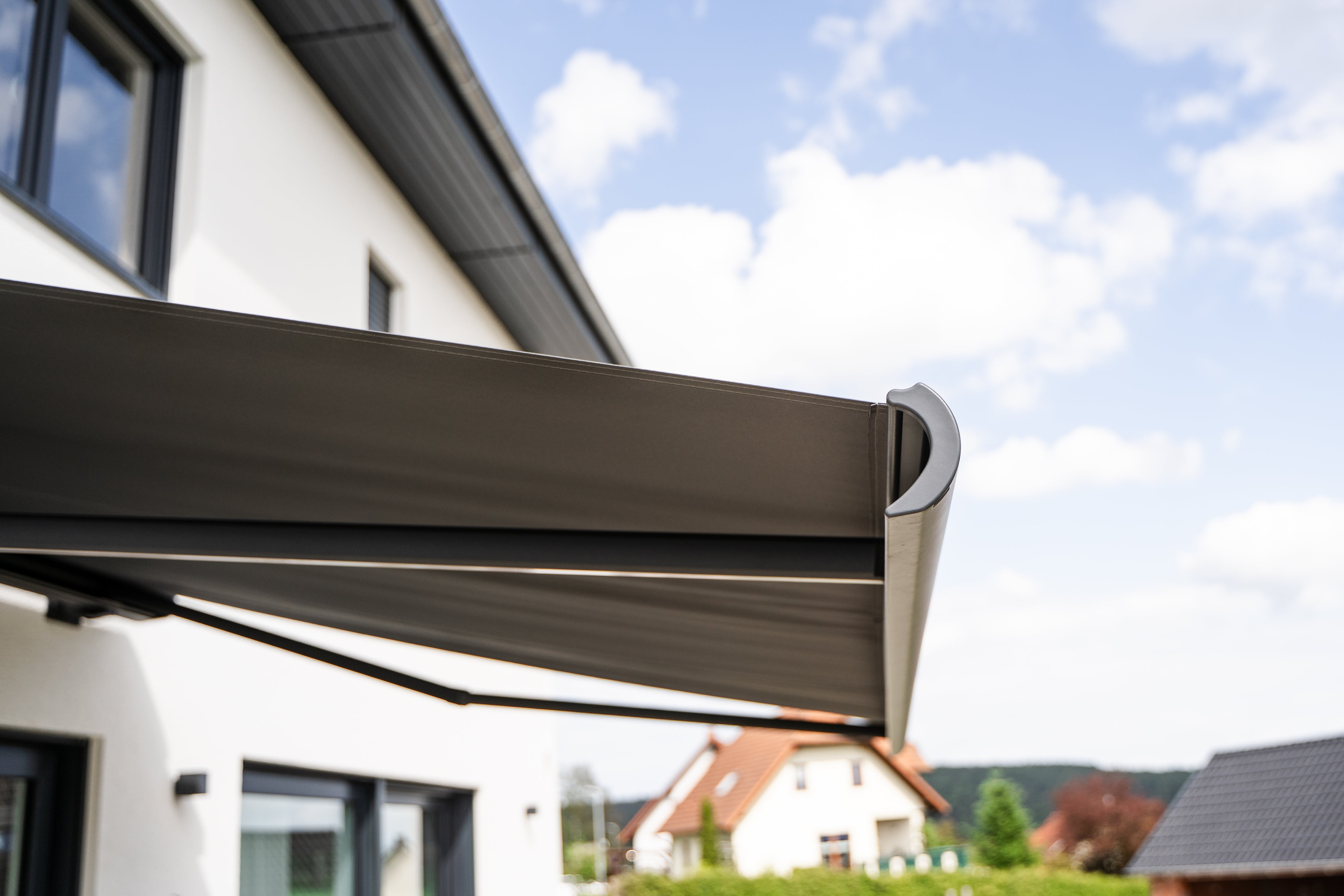

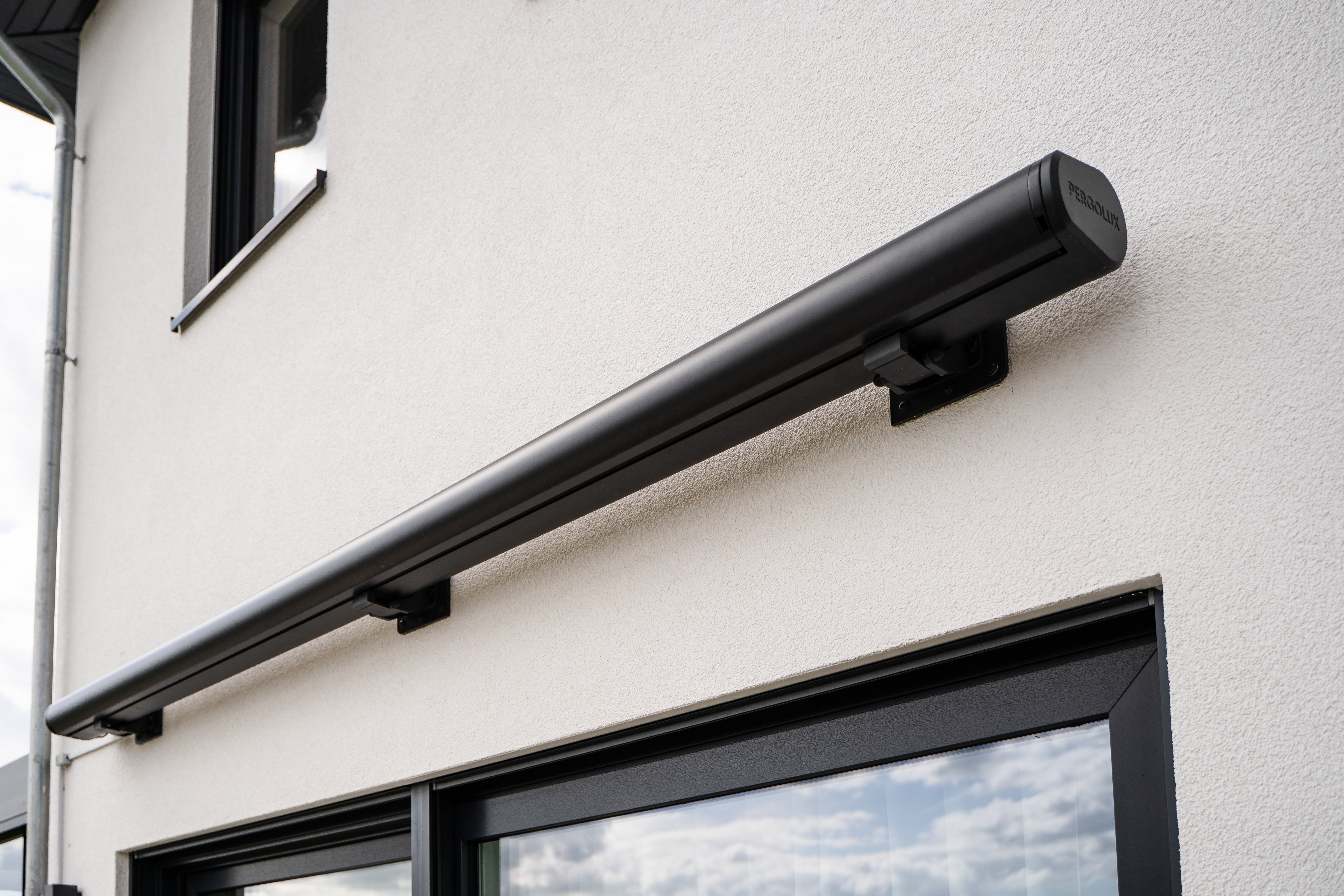

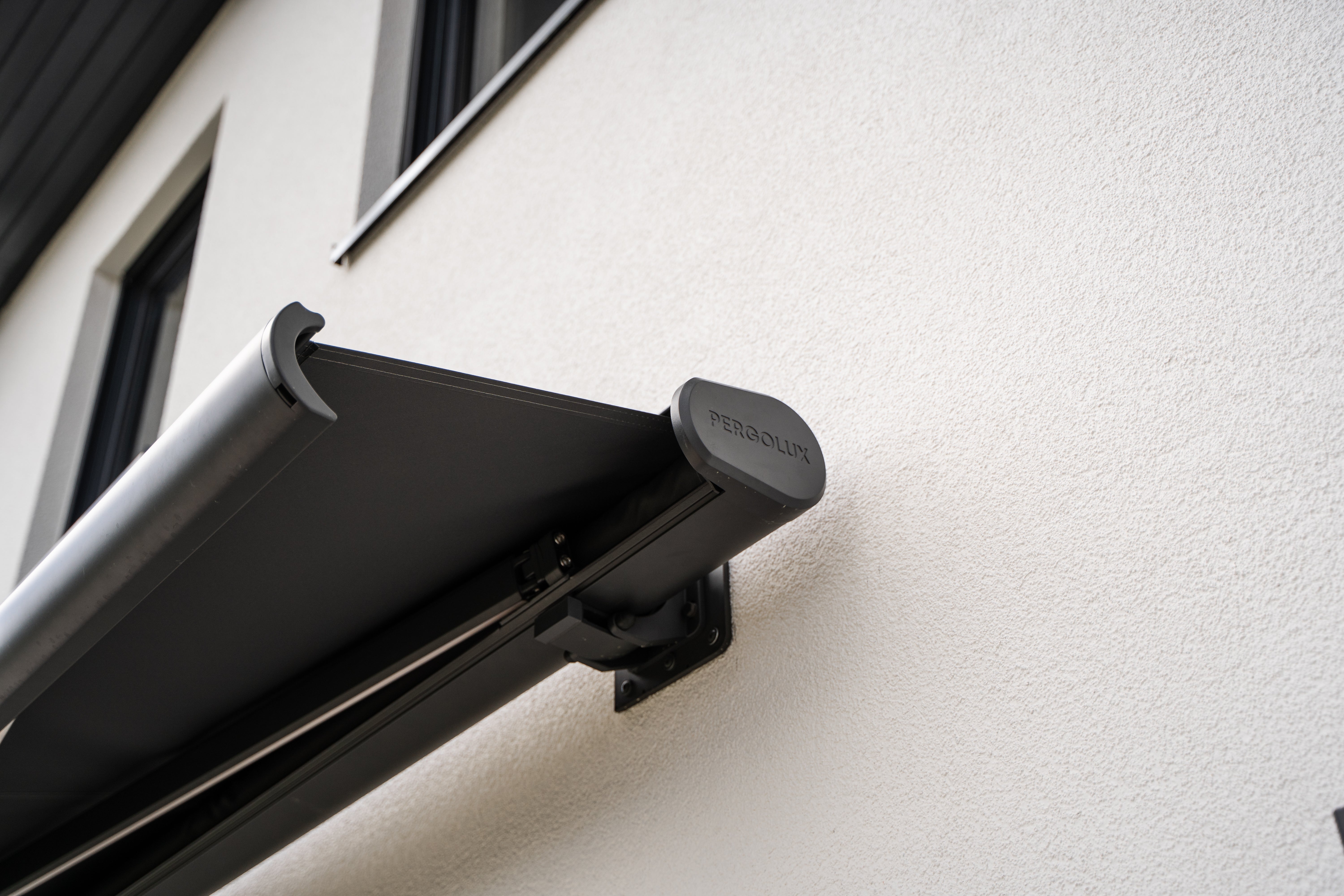

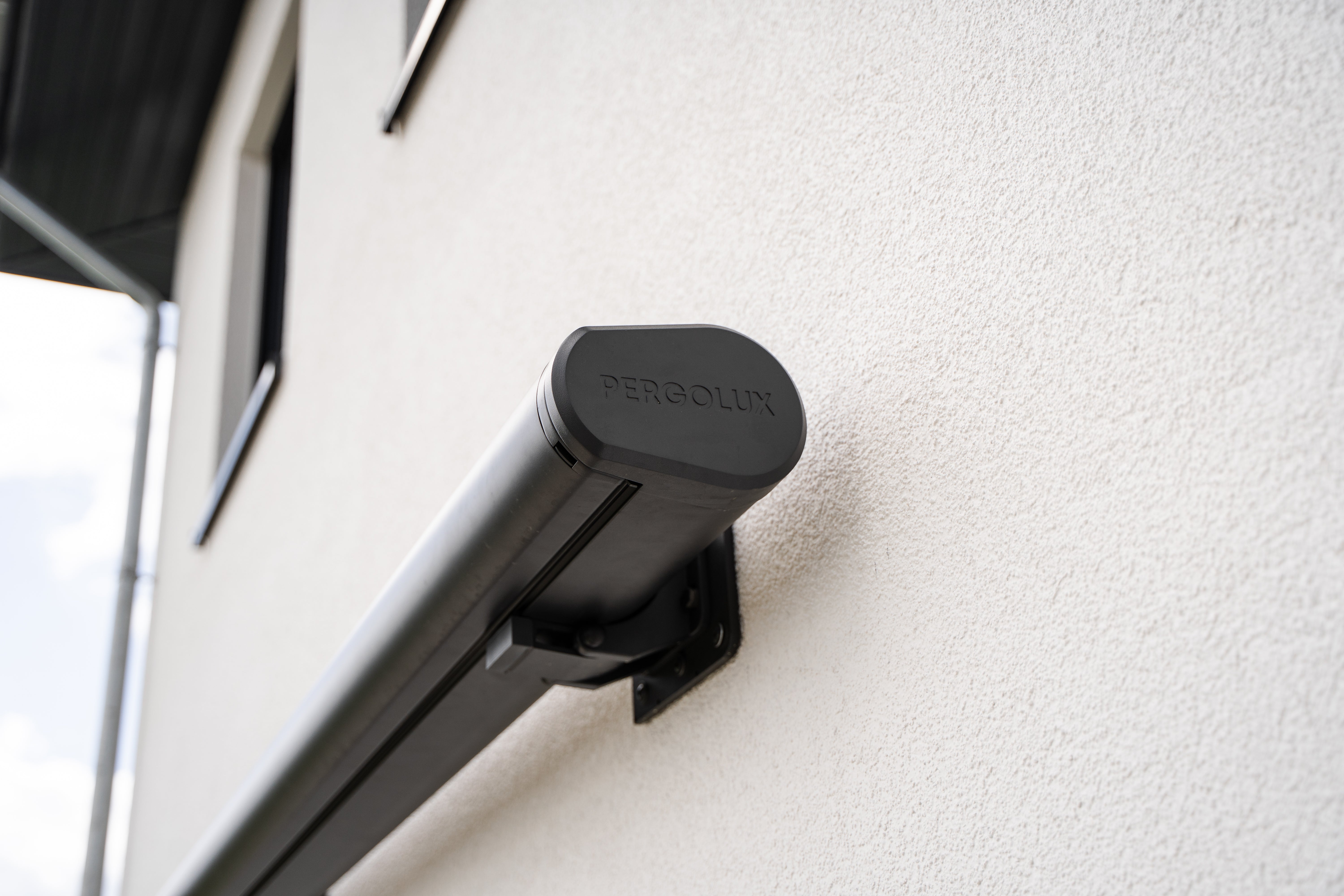

Rust- and Mold-Resistant Construction with 6063-T5 Aluminum & Full Cassette Protection

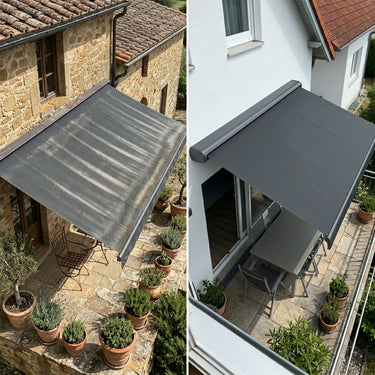

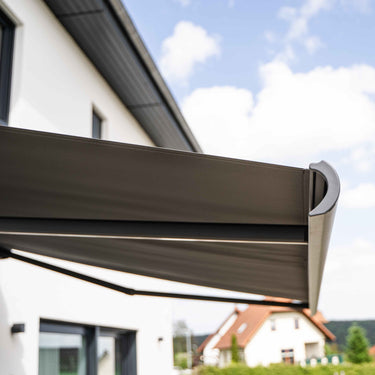

The full cassette design protects the awning and extends its lifespan. When retracted, the fabric and mechanism disappear completely into a waterproof housing made of high-quality 6063-T5 aluminum.
- Housing reliably protects against moisture, dust, and insects
- Prevents UV damage to the fabric and uneven fading
- No weak plastic parts, no mixed materials
- Rust- and corrosion-resistant
- Scratch-resistant powder coating by Akzo Nobel®
Simply rinse clean with a garden hose, helping your awning run as smoothly years from now as it did on day one.

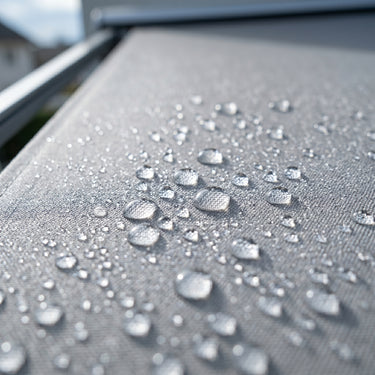

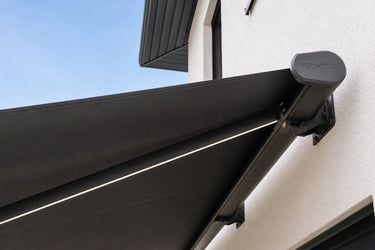

Cooling Heat Protection with PU-Coated UPF 50+ AuroWeave™ Fabric
The premium look of classic awning fabric – without the risk of mold or water pooling. The awning fabric is made of breathable 8.3 oz/yd² PERGOLUX AuroWeave™ polyester. A special polyurethane (PU) coating ensures an especially long lifespan.
- Lowers the temperature underneath by up to 20°F

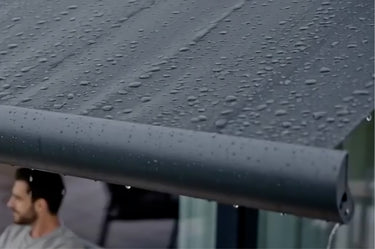

- Water-repellent in light rain
- UPF 50+ certified – blocks 98% of UV rays
- Odor-, mold-, and fade-resistant (Color Fastness Level 4)

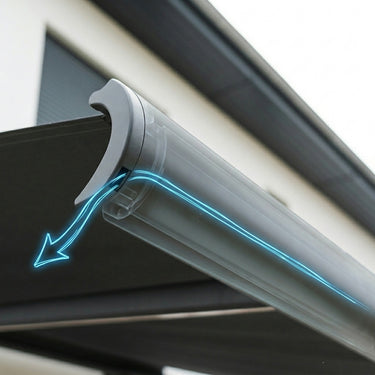

- Stays taut – no water pooling
- Easy to clean by rinsing
- Lets soft, filtered daylight through
- High-quality canvas look
Lab-tested with 1000 hours of extreme Xenon-arc radiation – proof that the fabric withstands even the most intense sun exposure.

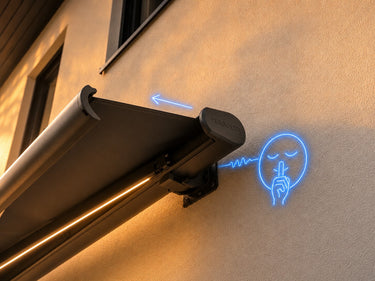

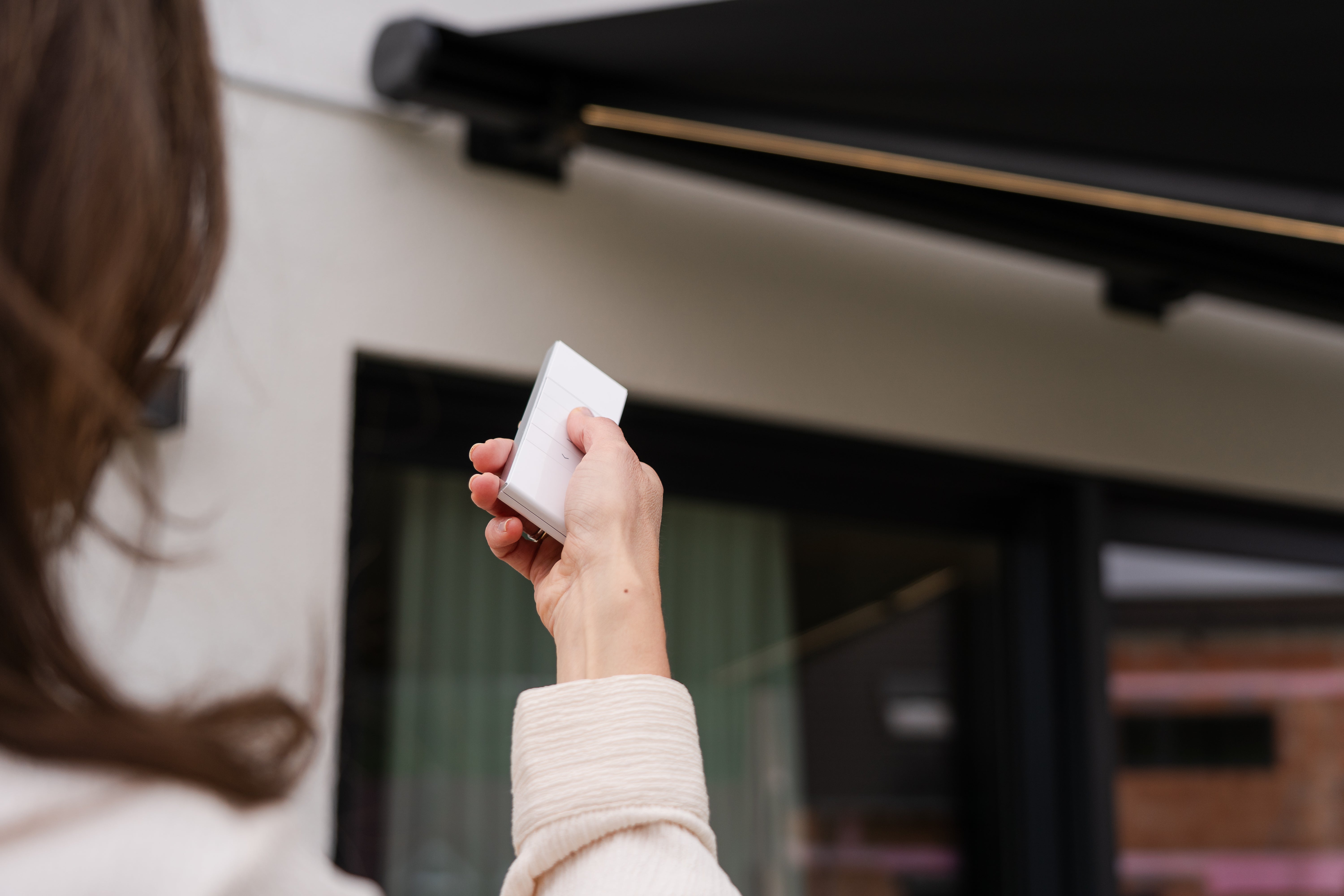

Whisper-Quiet Motor and 304 Stainless Steel Arm Cables
Open and close your awning conveniently at the touch of a button. The two folding arms operate with internal 304 stainless steel cables in a PVC sheath. Powered by a high-torque radio motor with two-way communication and an ergonomic remote control.
- No chains that can squeak, rust, or snap
- Simple one-touch operation
- Smooth, even motion
- Lab-tested for over 3,000 opening and closing cycles
- Remote control range up to 65 ft
- No re-greasing, no maintenance

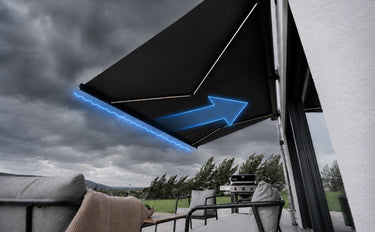

- Optional: wind sensor automatically retracts the awning in wind or heavy rain
Quiet operation, easy to control – from the living room or from outside.

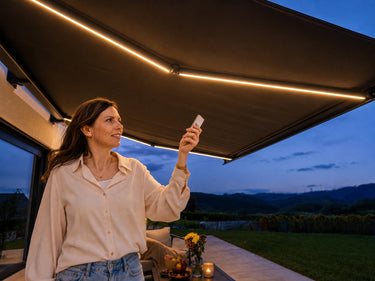

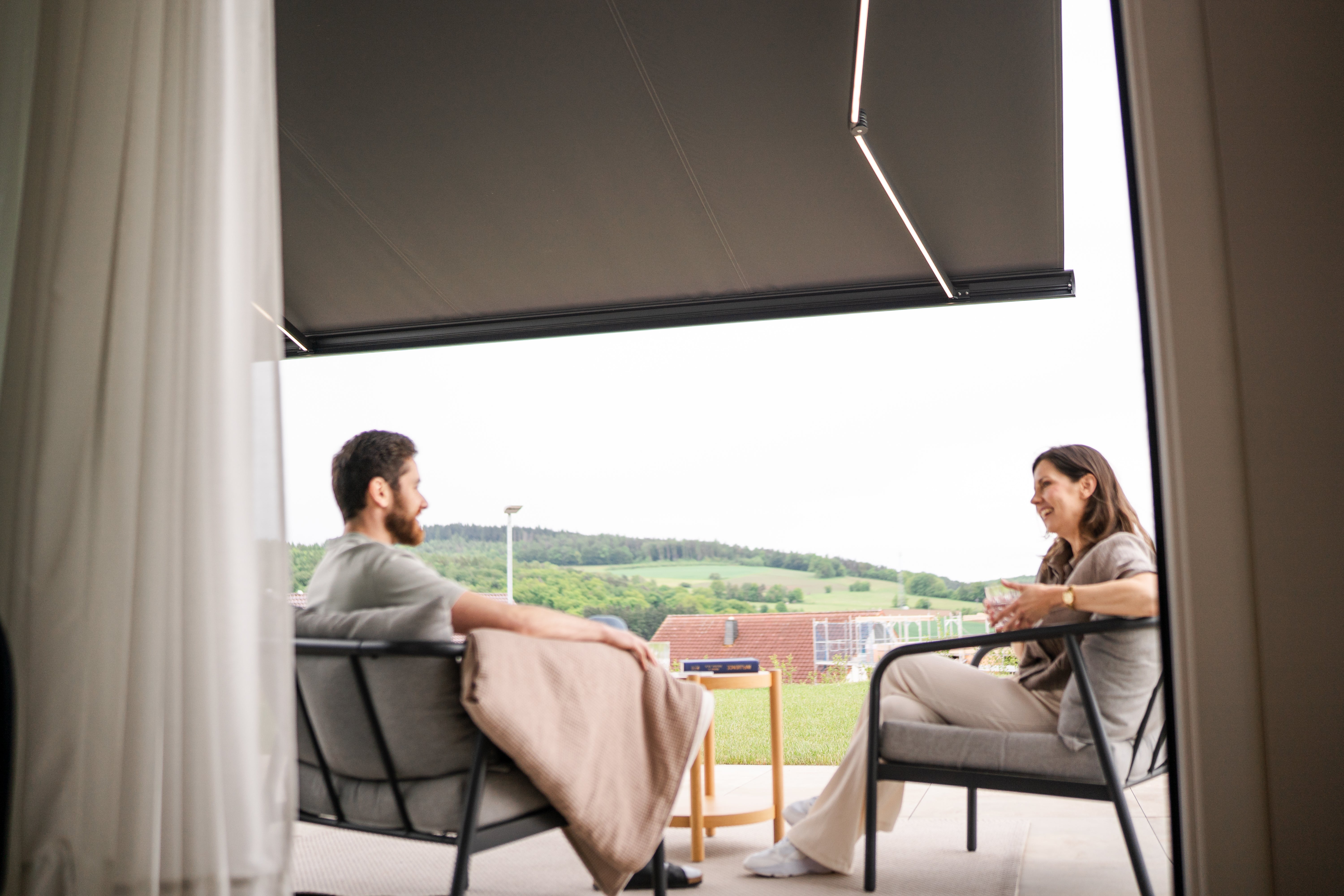

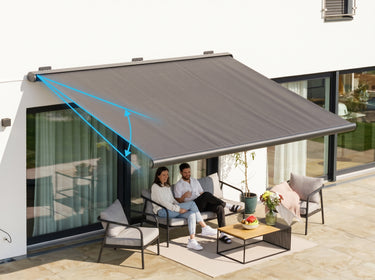

Control Shade and Light – by Adjusting the Pitch Angle or with the Integrated Dimmable LED Strips
More comfort on your patio. Hot-dip galvanized precision hinges allow manual pitch adjustment – for the perfect shade angle even in the late afternoon. Integrated chip-on-board (COB) LED strips in the arms provide atmospheric lighting.
- Adjustable pitch angle from 5° to 25°
- Rust- and corrosion-resistant hinges
- High-quality LEDs for an even, continuous band of light
- Continuously dimmable to set the right mood
- No special wiring needed
More time outdoors – during sunny midday hours and late into the night.

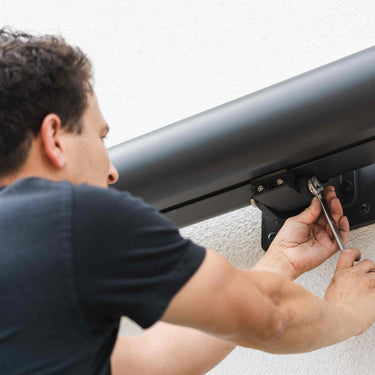

The Support You Need for Professional or DIY Installation

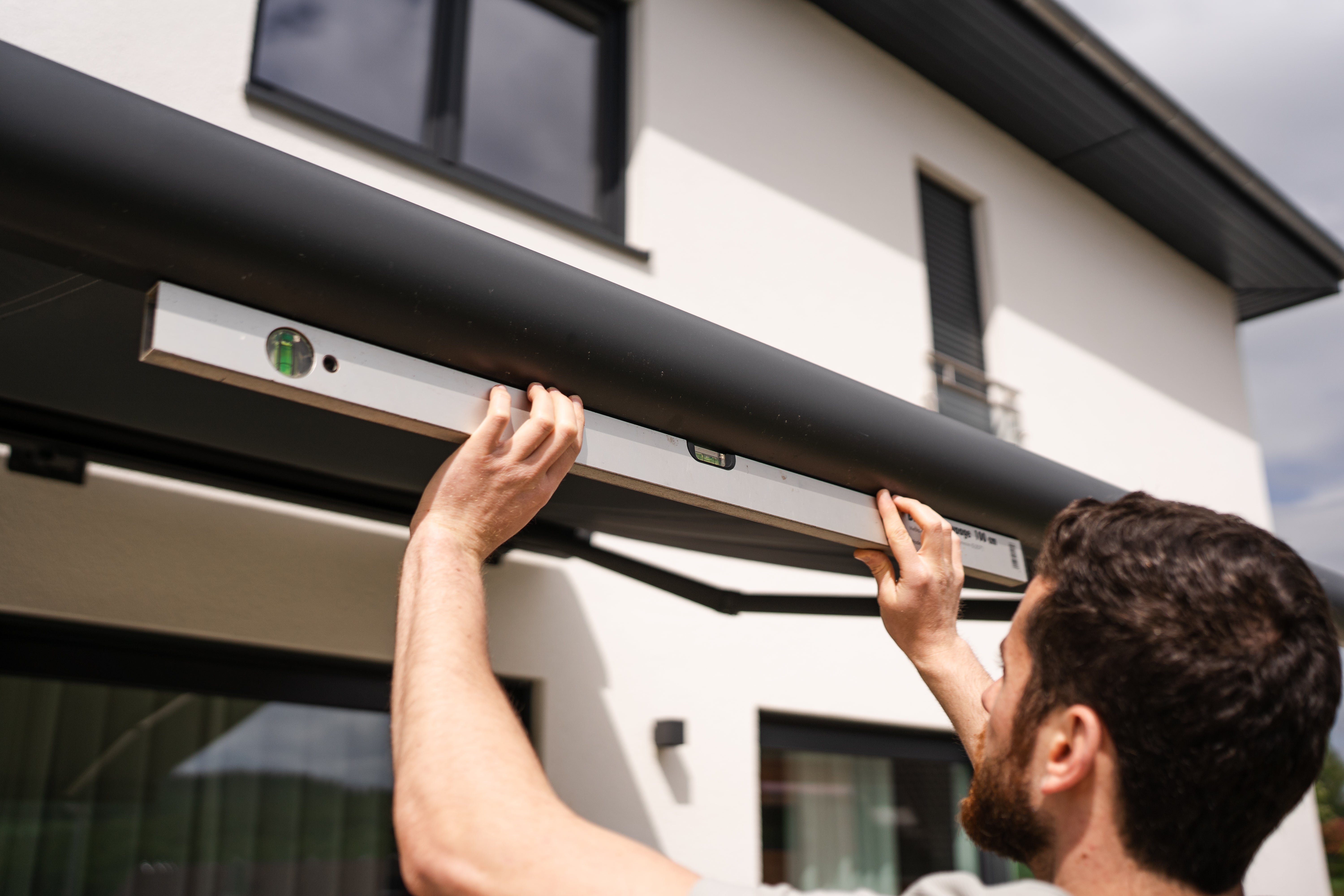

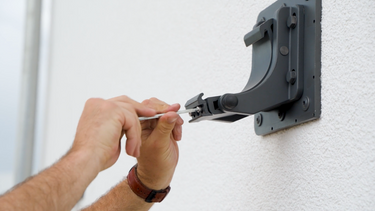

Install your awning within an hour. The awning is designed so two people can install it in an hour – even without prior experience. No electrician needed.
And if a question comes up: our support team is available live via chat, phone, and video call – while you install.
DIY-Assembly so simple, anyone can do it
So simple, even building blocks would be envious. Our awning can be assembled by 2-3 people in an hour, no expertise required. So your outdoor space is ready to go for the sunny days ahead.
If you'd rather skip the effort, we've partnered with certified and insured professional assembly partners – providing a reliable and safe install done exactly to your specifications. Just add professional installation to your cart along with your awning.
Download the assembly guide as a PDF.
Select your size to view the matching drawings:
| Design | |
|---|---|
| Housing construction | Fully enclosed cassette |
| Frame color options | Anthracite / White |
| Mounting options | Wall or ceiling |
| Approved mounting surfaces |
STANDARD: Concrete • Timber frame/stud • Render over timber • Timber rafters • Steel • Solid brick/clinker/cavity masonry • Sand-lime brick • Hollow block/Poroton • ETICS/EIFS SPECIAL CARE REQUIRED: Brick veneer on timber • AAC/Ytong • Hollow-core concrete • Natural stone |
| Operation | Remote control, hand crank |
| Dimensions | |
|---|---|
| Total product weight | 66.1 lb to 194.0 lb (incl. brackets) |
| Cassette width options | 10', 12', 13', 16', 20' |
| Cassette height (closed) | 5.9 in |
| Cassette depth (closed) | 8.7 in |
| Recommended mounting height | 8.2 ft to 11.5 ft |
| Minimum installation height | 7.9 in above door or window |
| Projection length | 7', 8', 10', 12' |
| Awning extension angle | 5° to 25°, adjustable |
| Materials | |
|---|---|
| Cassette | High-quality aluminum profile 6063-T5 |
| Arm cables | Stainless steel 304 (plastic-coated) |
| Brackets, hinges | Hot-dip galvanized Q235 carbon steel |
| Fabric material | 8.3 oz/yd² AuroWeave™ PU-coated polyester |
| Fade resistance | Level 4 |
| Rust resistant | Yes |
| Fabric | |
|---|---|
| UV protection | UPF 50+ (blocks over 98% of harmful UV rays) |
| UV test duration | 1000-hour Xenon Arc test |
| Fabric warranty | 5 years AuroWeave™ |
| Performance | |
|---|---|
| Lifespan | 20 years of standard use |
| Speed | 60 seconds full open/close cycle |
| Wind resistance | Class 2 (18-24 mph) |
| Rain resistance | EN 20811 |
| Weather sensing | Optional wind sensor for automatic retraction |
| Lighting | |
|---|---|
| Integrated | LED strip (DC24V COB, ~98 D/ft) |
| Dimmable | Yes |
| Max lumens | ~131 lumens/ft |
| Color temperature | 3000K - warm white |
| Operation | Remote control included |
| Electrical | |
|---|---|
| Weather rating | IPX4 |
| Power requirement | 120V / 60Hz |
| Plug type | Type A |
| Cable exit point | Left (facing house wall) |
| Cable length | 24.6 ft |
| Delivery | |
|---|---|
| Shipping | Free shipping on all orders |
| Number of packages | 2 (1x awning, 1x mounting brackets) |
| Product weight | 6'7"–13'1": 66–148 lb (2 people) 16'5"–19'8": 159–194 lb (3 people) Bracket carton: +11–26 lb |
| Installation | |
|---|---|
| Difficulty | Beginner-friendly |
| Installation time | 1 hour |
| Recommended crew size | 2-3 |
| Tools/hardware included | Wall or ceiling brackets are included. Fixings and spacers are not included. |
| Tools required | Drill, drill bit suited to the wall type, spanner (19 mm for M12, 17 mm for M10, 6 mm and 5 mm hex/Allen keys, level, 2 ladders, tape measure. Max fastener size: M12, minimum: M10 (washer required). |
| Professional installation | Optional |
| Surface restrictions | Plasterboard/drywall (wall or ceiling): do not mount directly. No load-bearing capacity. If drywall is present, locate the structural stud or joist behind it and fix into that. |
| Warranty | |
|---|---|
| Warranty term | Component-based / 10-year cassette |
| Warranty coverage | Aluminum cassette - 10 years Motor - 5 years Arms/mechanism - 5 years Fabric (AuroWeave™) - 5 years Electronics - 2 years |
Let a certified crew handle the installation
Prefer not to build it yourself? Add professional assembly to your order and we'll arrange installation through Elite Tech Installs, our trusted PERGOLUX partner — installed to factory specification, with your warranty intact.
Installation by Elite Tech Installs · serving all 50 states
A finished product, ready to use
Assembly covers the full labor of installing your PERGOLUX product — mounting and assembly to an approved surface, then tested and handed over:
- Delivery coordinated around your installation date
- Mounting and assembly to an approved wall or foundation
- Structural fixing, leveling, and squaring
- Calibration and a full function test
- A walkthrough of your finished product before the crew leaves
- Packaging stacked neatly on-site for disposal
Our products are designed to be DIY-friendly. Installation is there when you'd rather not.
Whether you're short on time, working with a larger or more complex build, or simply want it done by a professional — assembly takes the whole job off your plate.
Done in one visit
No borrowed tools, no hardware-store runs, no half-finished build. A professional crew arrives, installs, and hands it over ready to use.
Warranty stays intact
Every installation is completed to PERGOLUX factory specification, so your product warranty is fully preserved.
PERGOLUX specialists
We work exclusively with Elite Tech Installs, who install PERGOLUX products day in and day out — so the job goes faster and cleaner than a general contractor seeing it for the first time.
What the crew handles on-site
The core job is the same for every PERGOLUX product. The specifics depend on what you're installing.
Pergolas Louvered & flat-roof
- Post positioning and foundation anchoring
- Beam and rafter assembly
- Louver installation and motor calibration
- Leveling, squaring, and function test
Awnings Wall-mounted
- Wall surface reviewed and mounting confirmed
- Brackets fixed to an approved structural wall
- Cassette mounted, leveled, and pitch-set
- Plugged into a standard outlet and tested
Timing depends on the product: awnings are typically a couple of hours, most pergolas a single day, and larger projects like double-pergola setups may run to a second day.
Three steps, from checkout to finished build
Add it at checkout
Choose professional assembly as an add-on when you order your pergola or awning. Available in all 50 states.
We coordinate your date
ETI schedules around your delivery and sends simple prep instructions — clear the area, confirm access, and check any permits or HOA approvals.
The crew builds and hands it over
They install, test, and walk you through the finished product. You receive a final invoice once the work is complete.
Common questions
How is installation scheduled?
Once you purchase the assembly add-on, ETI coordinates scheduling around your delivery date. Lead times are typically a few weeks and vary by location and technician availability.
How should I prepare my site?
ETI sends clear instructions ahead of time: clear the installation area of furniture, plants, and obstructions, make sure the team has unobstructed access, and confirm any required permits or HOA approvals are in place beforehand.
What happens on installation day?
ETI handles everything on-site — foundation anchoring, structural mounting, assembly, leveling, and calibration. Most installs take one day; larger or double-structure projects may take two.
What about my warranty?
Because ETI installs exclusively to PERGOLUX factory specifications, your product warranty stays fully intact.
What isn't included?
Assembly covers labor for mounting and building your product. It doesn't include structural reinforcement (like a ledger board), electrical hardwiring, debris removal, or site prep — you'll be told upfront if anything extra is needed for your specific site.
Assembly is a labor-only service provided by Elite Tech Installs. Final scope, site suitability, and any additional charges (for structural reinforcement, difficult access, or special site conditions) are confirmed by ETI before scheduling. Applies to first-story residential installations; commercial projects are reviewed separately.
Keep your outdoor space up to 20°F cooler and glowing on demand after sunset
-
Take your outdoor space back from the sun. Most patios and balconies are simply unusable on summer afternoons. With the PERGOLUX Awning, you stay protected from heat and UV rays – morning coffee outside, work calls from the patio, lunch without squinting.
-
Take your outdoor space back from the sun. Most patios and balconies are simply unusable on summer afternoons. With the PERGOLUX Awning, you stay protected from heat and UV rays – morning coffee outside, work calls from the patio, lunch without squinting.
Get 30% OFF Now
Get 30% OFF Now
Up to 30% off awnings, live now. No code, no waiting for Black Friday.
-
UPF 50+ thermal protection for hot afternoons. Made from 8.3 oz/yd² PU-coated polyester that blocks 98% of UV rays, reducing temperatures underneath by up to 20°F – so your patio stays usable through peak sun. Lab-aged 1000 hours under Xenon-arc radiation, meaning the material won't fade, crack, or lose UV protection over time like untreated fabrics.
-
Blocks even low-lying sun thanks to the adjustable tilt angle. With the manual 5°–25° tilt adjustment, you can easily create the shade you need even when the sun is low.
-

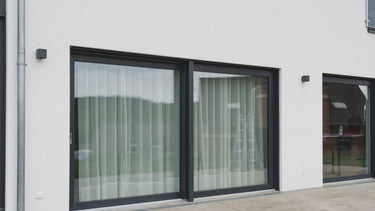

Reduce Indoor Heat and Glare. When installed over sliding doors or large windows, awnings shade glass surfaces directly to keep interior rooms cooler and reduce glare – letting blinds stay open and easing the load on your AC during the hottest part of the day.
A sealed aluminum casing, hidden hardware, quiet coated cables, and built-in dimmable LEDs create a cleaner look from day to night.
-
No Visible Screws, Bolts, or Anchors. The PERGOLUX cassette uses concealed hardware throughout, giving a cleaner aesthetic and fewer weak points where rust can take hold over time.
-
Whisper-Quiet Operation. A quiet motor glides the awning smoothly in and out. The 304 stainless steel arm cables are wrapped in a protective plastic coating, acting as a permanent silent buffer that eliminates grinding or squeaking – no re-greasing, ever.
-
Tested for 20+ Years of Regular Use. Lab-tested for 3,000 open-close cycles, offering 20+ years of enjoyment at the average 150 uses per year, with integrated motor protection to prevent overheating and provide consistent smooth performance over time.
-
PU Coating Blocks Mold. Mold is the top reason awnings get replaced. Our PU-coated poly shades repel water while allowing fabric to breathe when rolled up, keeping moisture from trapping between layers and making debris easy to wipe off the surface.
-
Sealed Cassette Keeps Stored Fabric Dry. The 6063-T5 full-cassette housing seals rolled fabric, motor, and arms from weather exposure when retracted – letting you store your awning all winter or during rainy seasons. You can then return to use without dealing with mold, covers or cleaning.
-
Three Rust-Proof Materials, Zero Weak Joints. Most awnings fail from rust in the hidden joints. We use 6063-T5 aluminum for the structure, hot-dip galvanized Q235 steel for brackets and hinges, and 304 stainless steel for internal cables. Designed to prevent corrosion from salt air, heavy rain, or coastal humidity.
-
No Sagging or Brittle Fabrics. Our awning fabric is stress-tested for 1000+ hours under concentrated UV radiation that simulates years of harsh outdoor exposure, able to hold shape and tension even in climates with intense sun exposure.
-
No screeching - even after years. Our 304 stainless steel cables are encased in a permanent protective sleeve that eliminates metal contact, while hot-dipped galvanized hinges resist rust, meaning no screeching or grinding sounds when the awning opens or closes.
-
Fade Resistance, Even With Intense Sun. AuroWeave™ awning fabric has Level 4 Color Fastness (ISO 105) that won't fade like lesser fabrics. Full cassette storage shields fabric from UV when retracted, extending color life even further.
Open or close by remote, rinse clean, and skip the electrician with easy install and optional auto-retract.
-
Remote Controlled with Extended Range. A high-torque RF motor extends and retracts the awning at the touch of a button – no manual cranking, no effort. Operate it from inside your house or across the yard with an extended 65 ft range.
-
Stay Outside Through Light Rain. The tightly woven 8.3 oz/yd² polyester fabric with PU coating repels water efficiently enough to stay outside through a drizzle, and breathes to allow moisture evaporation when rolled up.
-
Rinse-Clean Fabric with Non-Stick Coating. The PU coating creates a smooth surface barrier that prevents dirt, pollen, and debris from soaking into the fabric fibers, easily rinsed away with a garden hose for low-maintenance cleaning.
-
Optional Wind Sensor with Auto-Retract. Discreet sensor detects vibrations from strong wind and automatically sends a retract command to the motor – no rushing home when the weather changes. No drilling, no wiring, just clip it on. Sold separately.
-
Two-Person DIY Install, No Electrician. Designed for 2 people to install in 1 hour with standard tools. Plugs into a regular outlet; no hardwiring or licensed electrician required. Chat, phone, and video call support 7 days per week.
-

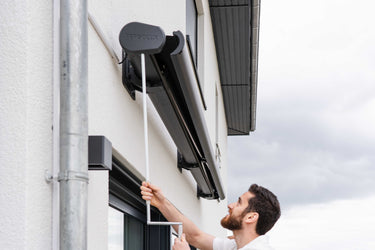

Emergency crank included – never left without control. If the power goes out, your awning still opens or closes. Just attach the crank and operate it by hand – no motor needed, no risk.
20+ years of engineering experience, direct-to-consumer pricing, and zero compromises. That's the PERGOLUX standard — now in our awning too.
Exceptional value for money is part of our DNA. By cutting out middlemen, engineering smart, and producing at scale, we deliver a premium product at the best price on the market.
Do you have any questions? Just give us a call — we'll advise you free of charge and without obligation.
📞 Call now 469-250-0415Don't want to pay for an installer? No problem! Our DIY assembly instructions make your awning install a breeze. With two people, you can have your awning up and ready to use in just one hour.
Yes. PERGOLUX motorised awnings are designed for straightforward DIY installation, making them suitable for most Australian homes.
With 2–3 people to help lift the awning into position, most homeowners can complete the installation by following our detailed installation guide, step-by-step video tutorials, and the PERGOLUX app.
If you'd rather leave it to the experts, we also offer access to professional installation through our trusted installation partners in selected areas across Australia.
Most PERGOLUX awnings can be installed in around 1–2 hours, depending on the wall type and the size of the awning. The installation process includes:
- Measuring and marking the mounting position
- Installing the wall brackets
- Lifting and securing the awning cassette
- Connecting the power supply
- Testing the motor and remote control
With the right preparation and a couple of helpers, installation is quick and straightforward.
You don't need specialist trade equipment to install a PERGOLUX awning.
For most installations, you'll need:
- 2 sturdy step ladders or A-frame ladders
- Power drill (hammer drill for concrete or solid brick)
- Masonry drill bits (14mm or 16mm, depending on your mounting surface)
- Socket wrench or ratchet set
- 6mm Allen (hex) key
- Spirit level
- Tape measure
- Pencil or marker
- Caulking gun (for chemical anchor resin and exterior silicone where required)
- Digital wall scanner (recommended to detect electrical cables and plumbing before drilling)
Always ensure you're using the correct fixings for your wall type.
We recommend 2 to 3 adults.
Drilling and bracket setup can be handled by one person, but lifting the cassette – which weighs roughly 100 to 170 lbs depending on size – safely requires a team.
PERGOLUX provides the heavy-duty wall brackets (designed for M12 bolts), but because every house is built differently, the wall anchors must be purchased separately from your local construction materials store. Use the table below to know exactly what to buy based on your awning size and wall material. How many mounting brackets and anchors you need, depends on the width of your awning.
For awnings that are 16 ft wide or wider, the awning comes with 3 mounting brackets and you need 12 anchors.
For awnings that are less than 16 ft wide, the awning comes with 2 mounting brackets and you need 8 anchors.
The anchor depends on your wall material. Here is a quick reference:
Poured concrete: M12 bolt anchor, 2-3/4" (70mm) embedment
Solid brick, double brick & natural stone: M12 × 140mm threaded rod set in injection resin, 3-1/2" (90mm) embedment
Perforated / hollow brick: M12 × 160mm threaded rod + 16×130mm injection sieve sleeve + resin
Sand-lime brick: M12 × 140mm threaded rod set in injection resin, 3-1/2" (90mm) embedment
Wood studs / timber frame: 8 × 100mm heavy-duty structural wood screw with washer, minimum 2" (50mm) embedment into the stud
Steel structure: M12 Grade 8 through-bolt with washers and locking nut
Concrete ceiling / overhang: M12 bolt anchor at 2-3/4" (70mm) embedment, or M12 rod + resin at 3-1/2" (90mm)
Aerated concrete (AAC / Ytong): Engineer's assessment strongly recommended
Not at all. For insulated facades you use a specialized 1/2" thermal standoff anchor (typically about 4-3/8" of usable length outside the wall). These engineered anchors pass through the insulation and anchor deep into the solid masonry behind it. The awning rests entirely on the heavy-duty steel cone of the anchor, so your insulation takes zero structural load and won't be compressed or damaged.
Yes. However, hollow brick walls require specialized anchors instead of standard masonry bolts. Review our assembly and mounting guide for the correct anchor specifications for your unique exterior wall type.
Three simple steps can save you a lot of hassle.
First, look for the obvious signs: electrical cables and plumbing pipes usually run straight up and down, or across from power outlets, light switches, taps and drains. Second, check your home's plans if you have them. Third, use a wall scanner (easy to buy or rent from most hardware stores) to check where you plan to drill. Spending five minutes checking now can save you from a costly mistake later.
We recommend mounting the brackets between about 8'6" and 10' from the ground. Keep in mind the "drop": for every 1 ft the awning projects outward, the front edge descends by roughly 3 inches. If you mount at 10 ft with a 10 ft projection, the front edge will sit at roughly 7'6" – well above head height and clear of outward-opening doors. Always leave at least 8 inches of vertical clearance above any door or window frame.
Yes. PERGOLUX awnings can be installed on either a wall or a ceiling, provided the mounting surface is structurally sound.
Concrete, solid brick and structural timber are all suitable when installed with the correct anchors.
Yes. The pitch can be adjusted both during installation and afterwards. This lets you fine-tune the amount of shade, improve water runoff during light rain, or adapt the angle as the sun changes throughout the year.
No.
PERGOLUX awnings are a plug-and-play solution. Each awning includes a 24.9 ft power cable with a waterproof PERGOLUX connector that plugs directly into a standard outdoor wall socket. No hardwiring is required for a standard installation.
Yes. PERGOLUX awnings are engineered for outdoor use and are weather protected. We recommend plugging the awning into a weatherproof outdoor power point, just as you would with any outdoor appliance.
No worries. Every PERGOLUX awning includes a manual crank, so you can still open or close it if there's a power outage.
Not if it's installed properly. The cable can be routed neatly along brickwork or hidden inside slim, paintable cable conduit, making it blend in with your home.
See a real example here:
No. The full cassette design completely encloses the fabric and arms when retracted, protecting them from dirt, rain and the elements. Simply close it when you're finished, and it's ready whenever you need it again.
PERGOLUX awnings are certified to Wind Resistance Class 2, meaning they're structurally tested to remain stable in normal winds up to 24 mph. For stronger or unexpected gusts, the optional vibration sensor automatically tells the motor to retract – so you don't need to rush home if the weather changes while you're out.
Yes. The 8.3 oz/yd² polyester fabric with PU coating efficiently repels water, meaning light rain will not disrupt your plans. For heavy or prolonged rainfall, we recommend retracting the awning to prevent water from pooling on the fabric.
No. When retracted, the fabric and arms are fully enclosed inside the aluminium cassette, helping keep everything secure and quiet.
PERGOLUX AuroWeave™ fabric is specifically engineered to resist mold. The PU-treated surface is water-repellent yet breathable, which prevents moisture from being trapped between layers when the fabric is rolled up. The non-stick surface finish stops pollen and organic matter from embedding in the fibers – the main food source for mold – so a simple rinse with a garden hose keeps the fabric clean. The full cassette enclosure adds a further layer of protection by shielding the rolled fabric from damp conditions all winter.
PERGOLUX AuroWeave™ polyester undergoes 1000 hours of laboratory Xenon-arc UV testing, equivalent to several years of harsh outdoor exposure. It achieves Level 4 color fastness – most awnings only reach Level 2 or 3. In practice this means consistent color across the entire surface with no uneven fading. The full cassette housing also shields the fabric from UV whenever the awning is retracted, dramatically extending its visual life compared to open-system awnings.
For a patio, bigger is generally better.
Remember that shade coverage changes throughout the day as the sun moves. If your main seating area is 10 ft deep, a 10 ft projection only covers it fully at high noon – the shade falls further back as the sun lowers in the afternoon.
We recommend choosing a projection that extends at least 1.5 to 3 ft beyond your main seating area to stay comfortably shaded all afternoon.

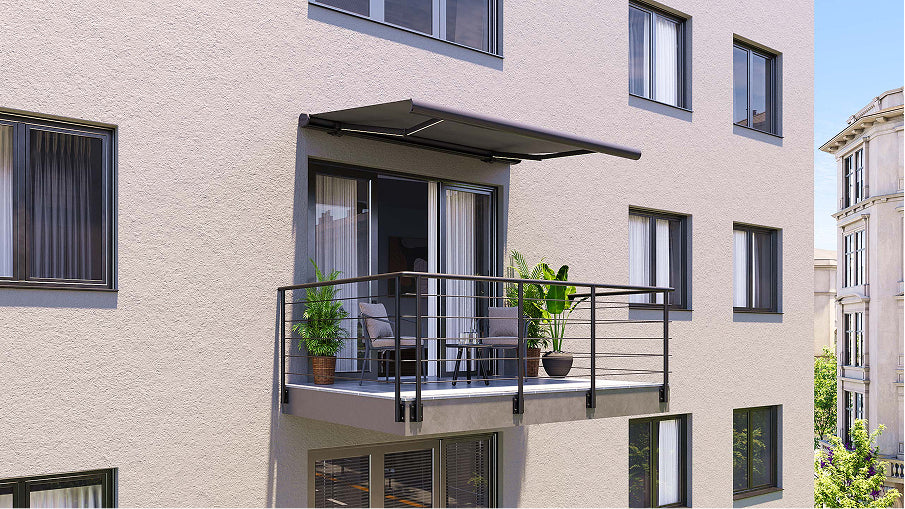

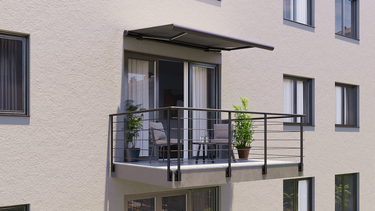

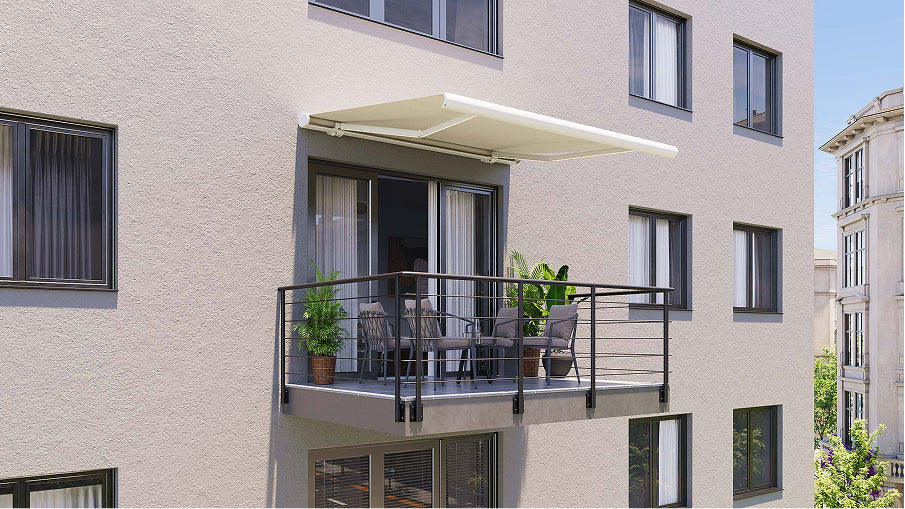

For balconies, choose a width that leaves 4–6 inches of breathing room on either side of the cassette. Make sure the projection (how far it extends) doesn't overhang the edge of the balcony, since that can catch upward wind drafts.
PERGOLUX stands behind its engineering with component-specific warranties:
10-year warranty on the structural frame and wall brackets.
5-year warranty on the motor and mechanical components, including the folding arms.
5-year warranty on fabric, electronics, controls, lighting, and accessories.
PERGOLUX awnings are designed to be repairable, not replaced. While we engineer our products to last for decades, in the unlikely event that the premium tubular motor breaks, it can be replaced without touching the rest of the awning. And because every unit includes a manual override, you can still operate the awning fully even if the motor is being serviced.
A standard awning installation on a private property typically won't require a building permit, so long as you're not planning on doing any custom electrical work.
However, requirements can vary depending on where you live, whether you're in an apartment or home, or if you need to get HOA approval before installing.
Do you have any questions? Just give us a call — we'll advise you free of charge and without obligation.
📞 Call now 469-250-0415We installed the awning two weeks ago and are very satisfied so far. The build quality makes a high-end impression, and it operates very quietly when extending. We notice the difference immediately, especially on sunny afternoons on our terrace. Installation took a bit longer than expected, but we managed to do it ourselves.
Ordering something this big online felt like a bit of a gamble. I wasn't completely convinced until it arrived. Once we got it installed though, I was sold. It looks really good and feels much more substantial than I expected.
Before this, our patio basically sat empty once summer got hot. Now we're out there for coffee in the morning, dinner at night, pretty much whenever we can. It's made a bigger difference than I expected!
We wanted to be able to enjoy the backyard without getting cooked by the afternoon sun, and this has made a HUGE difference. It opens and closes really smoothly and the gray frame looks great with our house.
I had a small issue with part of my order and reached out to customer service. It took a couple emails to get everything sorted, but they stayed on it and followed up afterward to make sure it was taken care of. Appreciate that.
I'll be honest, I was a little nervous ordering something this big online. It's not exactly a small purchase! But everything went smoothly and it honestly looks even better in person than it did in the pictures.
We pretty much stopped using the patio once summer hit because it was just too hot. Now we're out there all the time.
Our patio gets direct sun basically all afternoon. Now we can actually sit outside without sweating the whole time. HUGE difference.
You can tell right away this isn't a cheap product. The frame feels solid, the finish looks great, and the fabric seems like it's going to hold up. We've already had neighbors ask where we got it.
Installation took us most of a day, which was a little more work than we'd planned, but everything fit together properly.
We needed to push our delivery back because of a renovation. I was expecting it to be a headache, but customer service made it really easy. No extra fees, no hassle, and they confirmed the new date in writing.
I was definitely NOT looking forward to putting this thing together. It took most of a day and you really want two people, but the instructions were clear and everything fit like it was supposed to.
Our back deck gets hammered by the afternoon sun, so we barely used it during the summer. Now we're out there all the time. It blocks the heat really well without making the space feel dark or closed in.
We tried umbrellas before but they never really did the job. This covers way more of the space and now we can actually sit outside in July. HUGE difference.
The built-in lights were a big reason we chose this one. We use the patio almost every evening now. They're honestly one of my favorite parts.
Didn't expect it to be this quiet. The motor is really smooth and you barely notice it when it's opening.
I wasn't sure what size to order, so I reached out to support. They walked me through the measurements and even followed up with photos by email. The awning ended up fitting our deck perfectly.
Everything went smoothly from ordering to installation. The quality is really good and the whole process was easier than we expected. We've had it up for a while now and couldn't be happier with how it turned out.
Messaged about my delivery and got a response within a few minutes. Super helpful and they had the answer right away.
The ordering process was smooth and professional, and the delivery arrived on time. The awning is high quality, extremely easy to install, and looks great.
I was worried it might look a little bulky once it was installed, but it actually looks really clean. The frame works well with the house and it's not nearly as noticeable as I thought it would be.
It looks great against the house, and the LED lights are such a nice touch at night. Delivery was right on time too.
My husband and I installed it ourselves over a weekend. It took a little longer than we expected, but the instructions were pretty easy to follow and everything was labeled. Nothing was missing either. Once it was up, it felt really solid.
Got later than I wanted but customer service made it up to me. The shipping needs work but I can't discredit the end product. Awning works perfectly and easy to open and close.
I had an aleko mode (which was actually still good) even though it broke. This patio cover actually hides away fully so I'm pretty sure it's not going to have the same fading and leaking problems as the last one.
The delivery team called ahead, showed up when they said they would, and put everything where we asked. Everything was packaged really well and nothing was damaged. Can't ask for much more than that.
All i can say is do it. Best Price. Best Product. Best Service
You'll definitely need more than one person for the install. The install video is nice and easy to follow.
My favorite part of this thing is the built-in lights. I didn't even know how much I needed them on my porch. We can actually have dinner outside now! ABSOLUTELY LOVE!!!
I just bought a new BBQ and wanted something to keep me shaded when cooking. I like that you don't need to open and close by hand if you don't want to. Remote is a bit basic, but does the job.
My husband and I bought an awning that costs us $3000 not even 2 years ago and it's already ripped. I can alreadyu tell this product was built way better and looks so much cleaner
Ordered during pre-launch. Got put up by one of their installers - AMAZING! I actually didn't even know this comes with built in lights. Nice bonus!!
We were looking for an awning and bought one during the early access sale at Pergolux. Delivery was punctual, and installation was easily manageable for two people. Visually, it fits our balcony perfectly and provides exactly the extra shade we were looking for. So far, we have no complaints.
